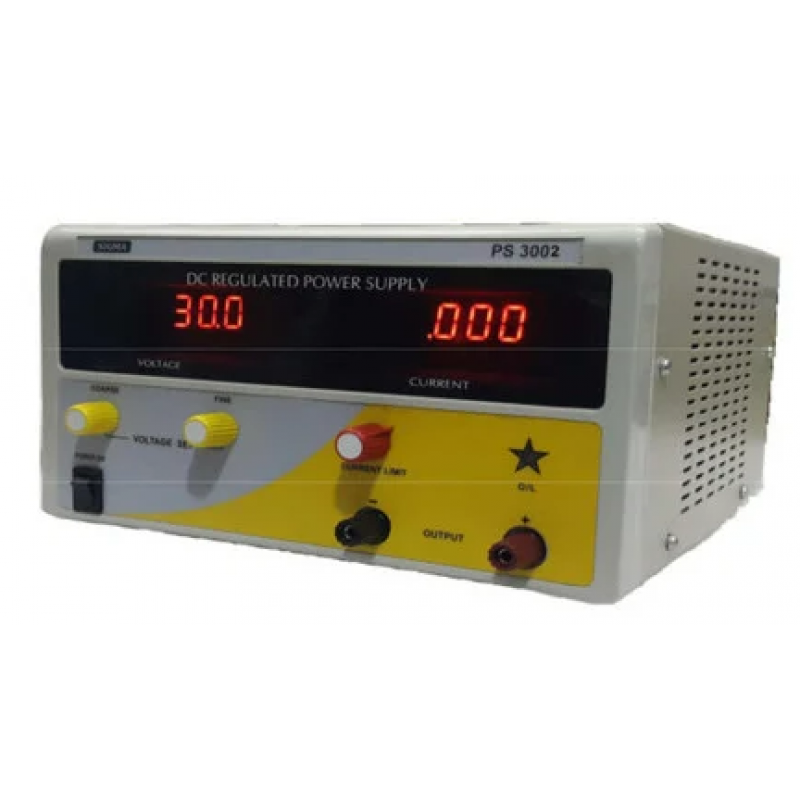

DC Regulated Power Supply
Output Type | Dual |
Output Voltage | 12V |
Output Current | 10A |
Our entity is involved in providing a comprehensive series of DC Regulated Power Supply. Experts manufacture this product as per industry norms employing the best quality material and advanced techniques.
DC Regulated Power Supply is an easy to use, low ripple high regulation precision instrument. It is particularly suitable for experimental development and low voltage applications. Its unique feature is over load protection, which makes it a safe power source for testing of electronic equipment.
The power supply’s output is floating i.e., either the positive or negative output is connected to the chasis or ground. Thus the power supply may be used as a positive or negative DC source by grounding –ve or +ve terminal respectively, can be floated to maximum ± 30 volts DC.
Specification:
INPUT VOLTAGE | 230V ± 10AC 50Hz |
OUTPUT VOLTAGE | 0 - 30V DC |
OUTPUT CURRENT | 2Amp |
LOAD REGULATION | ± 0.5% From No load to Full load |
LINE REGULATION | ± 0.05% For ± 10% variation in Input Voltage |
RIPPLE | Less than 100mV |
METER | Two Digital meter to monitor the output Voltage & Current of Output |
PROTECTION | Against short circuit & Over load |
