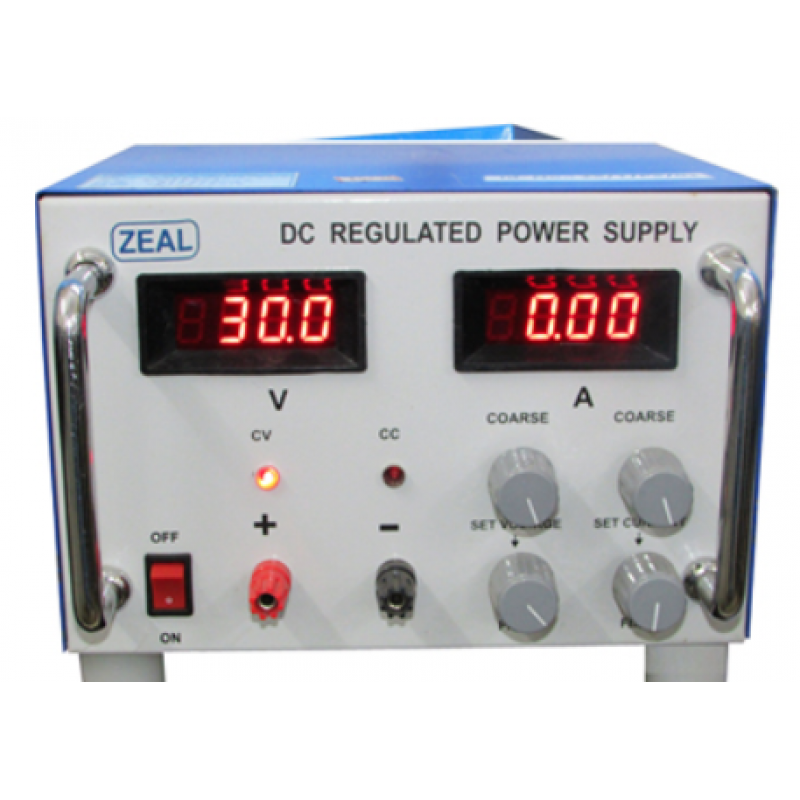

DC Regulated Power Supply
Product Details:
We are Manufacturer, Supplier, Exporter of DC Regulated Power Supply. This product also known as DC Power Supply. We are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.
ZEAL make DC Regulated Power Supply 30V/100A is widely used in various industries, laboratories, research & educational institutes. While ZEAL makes Low, Medium and High-voltage DC regulated Power supplies, this is a case of a high current power supply.
It is cost effective, highly reliable in performance for long life. AC mains voltage is rectified, filtered and pre-regulated by thyristor and post regulated by power transistors. Our designs are linear and hence our power supplies don't cause electromagnetic noise. Apart from an excellent load and line regulation, they are provided with overload and short circuit protections. Power supply can be used in both CV and CC modes.

Make	ZEAL
Output Voltage Range	0 to 30 V
Output Current	0 to 5 amp.
Load Regulation	+/- 0.05 % ( From No Load to Full Load)
Line Regulation	+/- 0.05 %
Ripple	+/- 0.05 % rms
Digital Meter	( Separate Meter For DC Voltage & current)
Accuracy	For Voltage : 0.5% +/- 2 dgt
	For Current : 0.5% +/- 2 dgt
Protection	Overload & Short circuit
Operating Temperature	0 to 50o C
Input Power Requirement	230 V or 110 V +/- 10 %, 50 / 60 Hz
