FEATURES
Seven segment LED display
Sturdy motor to drive drums at constant speed
Digital Friability Test Apparatus is a precision instrument suitable for measuring obression strength of tablets. The unit is equipped with two transparent acrylic drums which rotate at a speed of 25 ± 1 rpm. Each of the two acrylic drums are provided with an arm which carries the tablets along with it up to a predetermined height and allows them to fall from that specified height, while the drums are rotating, It is fitted with a digital revolution counter showing the current number of revolutions for the test. A thumb wheel switch is used to set the desired number of rotations. Provision is made to remove the lid of the acrylic drum by unscrewing just one knob. This is available in 1 drum and 2 drum assemblies.
SPECIFICATIONS
Display | 3 digit bright red seven segment LED display |
Accuracy | ± 1 revolution |
Resolution | 1 revolution |
Range | 0-999 revolutions |
No. of drums | Model 902 – 2 No. |
Operating Temp. Range | 10º-50º C |
Power | 230 V ± 10%, 50 Hz. AC |
Dimension | 230 mm (H) X 250 mm (W) X 540 mm (L) (Approx.) |
Weight | 9.5 Kg. (Approx |
Accessories | Drum 2 No. (902), 1 Nos. (903), Dust Cover-1 No. |

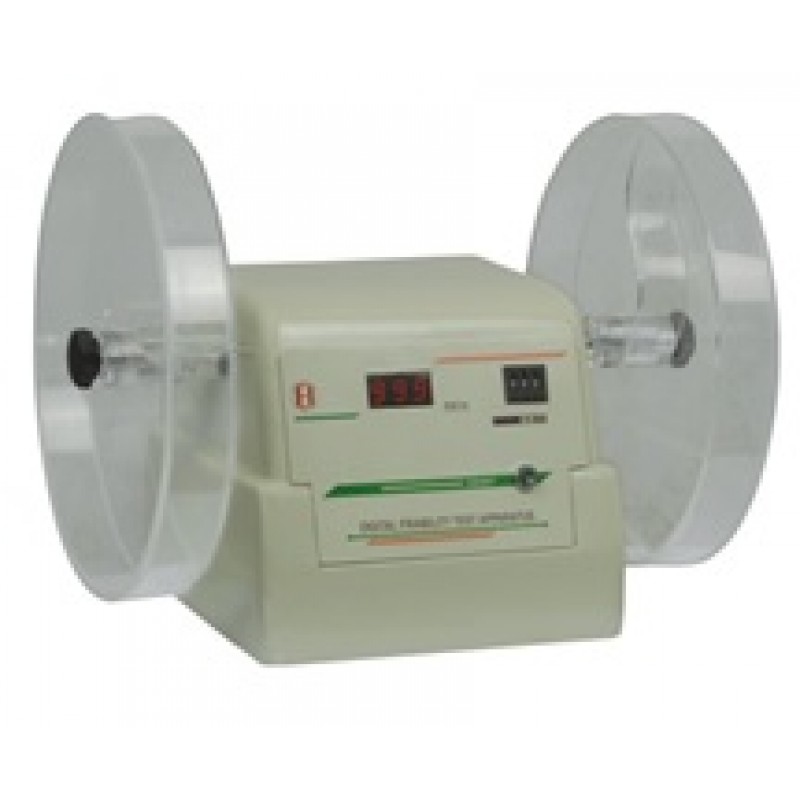

DIGITAL FRIABILITY TEST APPARATUS 903 and 902
