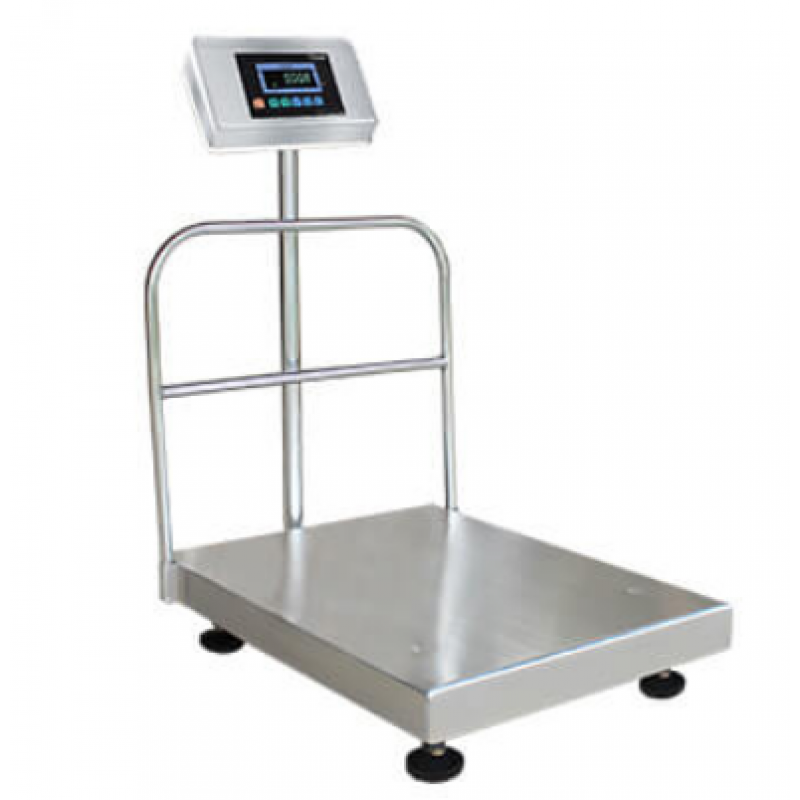

DS-451 PLATFORM SCALE

A high Performance Industrial Platform Scale engineered and built fully out of Stainless Steel SS-304. It is the perfect choice for the Food Industry, which demands a high level of hygiene & Low Maintenance. Its unique Industrial Design makes it highly Reliable & Rugged in the above Industries. It also comes in a low height profile version with optional ramp thus enabling easy weighments for large items.

Its wide choice of Capacity, Accuracy & Platform sizes along with multiple Interface options and Accessories makes it easy to expand the usage and connectivity in Industrial environment.

The DS-451HP version is IP-67 compliant and is ideal for the Pharmaceutical, Seafood & Chemical Industries which demand a high degree of corrosion resistance.

Technical Specifications

Model number	DS-451
Description	Digital scale
Weighing unit	kg ( kilo gram)
Display resolution	Max. of 1/15,000 (selectable)
Internal resolution	1/6,00,000
Processor	8-bit micro-computer
ADC	24-bit precision delta-sigma
Power supply	230 V AC, 50 Hz, +/-10%
Operating temperature	0°C to 45 °C
Operating humidity	Max. 85% Rh (non - condensing)
Console MOC	Stainless Steel SS-304
Display
	Type - VFD (Vacuum florescent display)
	Color - Green
	No. of digit & Size - 6 digits, 13 mm height
Key Board
	Type - Tact switch
	No. of Keys - 6 keys
	Material of construction - Polyester
