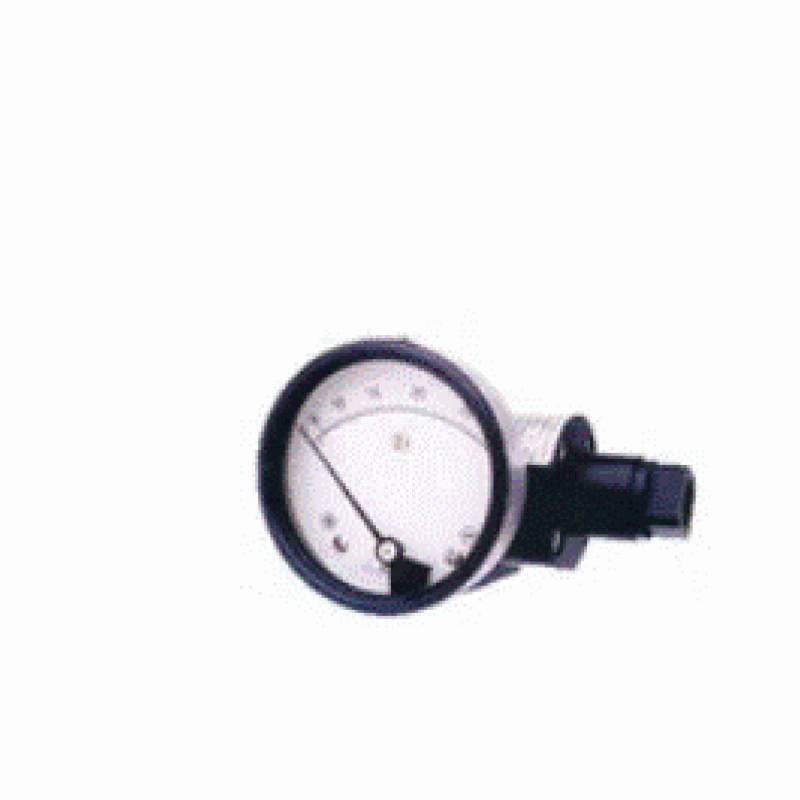

Diaphragm type Differential Pressure Gauges
Product Details:
Diaphragm type Differential Pressure Gauges |
Magnetic coupling Diaphragm type Differential Pressure Gauge |
(CE Certified model) |
These gauges are suitable for Non-Magnetic Fluids only. |
Ranges : Various DP ranges from 15 mm Wc uo to 7 bar |
We can also offer Compound ranges in series DGC 300 and series MAGNETIC |
Dial sizes : Various options like 2", 2 1/2", 3 1/2", 4”, 4 1/2", 6" dia. |
Connection : 1/4" NPT (F) |
Accuracy : + / - 2% FSD (Ascending) |
Working Pressure : Various options up to 100 bar |
Porting : Options like In – Line. Back or, Bottom |
Calibration : Non-Linear, spread over 65 degrees to 75 degrees Arc. |
Sensing Element : Small Convoluted Diaphragm |
Wetted parts : Aluminium, Brass, SS 316, Inductrial Plastic, Buna N, Viton |
Max. Working Temp.: 80 degree celsius |
Enclosure : IP 65 |
Diaphragm type Differential Pressure Gauges
- Views: 24
- Vendor: N.K. Enterprises
- Vendor Type: Manufacturer, Supplier
- Product Code: NKE0000008
- Availability: In Stock
- ₹0
