Dielectric Constant Apparatus

Power	ac mains
Usage/Application	Laboratory
Model Name/Number	AE 454
Type	Analog
Display Type	Analog meter
Packaging Type	corrugated box
I Deal In	New Only
Brand	ASICO
Country of Origin	Made in India

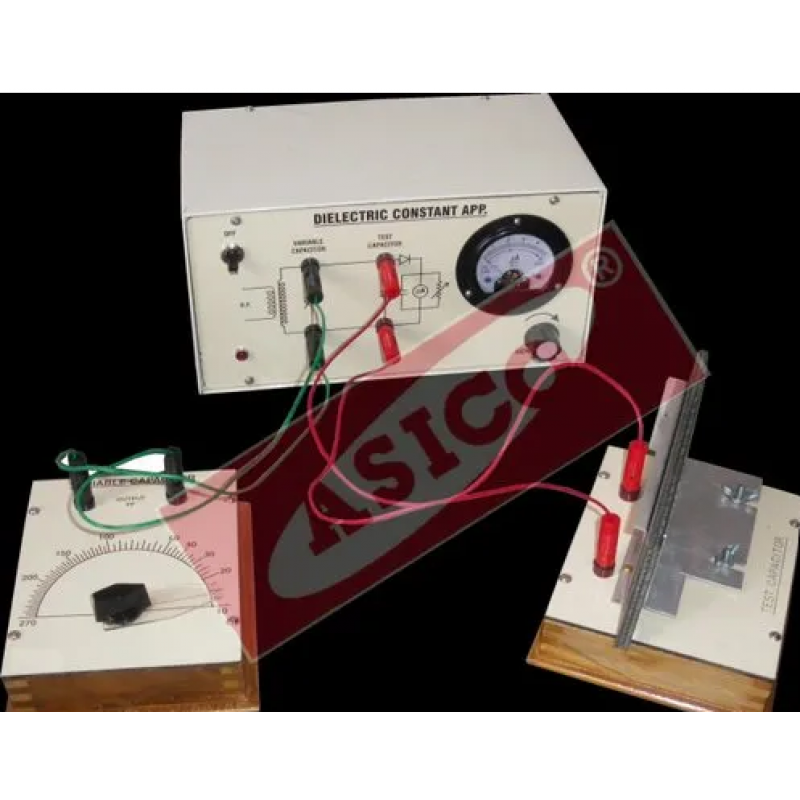

Dielectric Constant Apparatus (AE 454)

Objective: Dielectric Constant Apparatus has been designed for determines the dielectric constant of a substance

INSTRUMENT COMPRISES OF:-

1) Dielectric Constant App. consists of R.F. Generator (Range : 9-10MHz apprx.).
2) Micro ammeter (Range : 0-50m A).
3) Potentiometer for Sensitivity selection.
4) Fixed Capacitor (Metal ).
5 ) Variable Gang Capacitor.
6) Sockets for test capacitor and variable capacitor brought out at front panel.
7) One solid Bakelite plate to be insert in rap of test capacitor.
