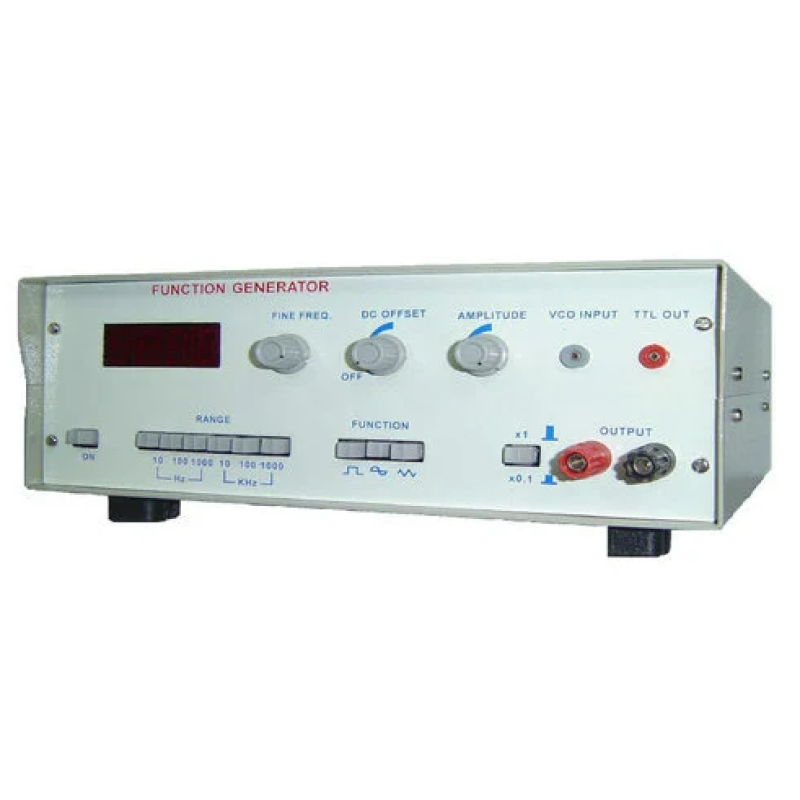

Digital Function Generator
Power | 5-10 Kwa |
Voltage | 220 V |
Packaging type | Box |
Our company holds immense experience in this domain and is involved in presenting an enormous quality range of Digital Function Generator.
1Hz to 1MHz frequency range
Sine/ Square/ Triangle waveforms
Frequency coverage in band switch with frequency multiplier & fine controls
The Digital Function Generator is a useful test instrument capable of generating multiple waveforms like sine, square and triangle at any required frequency, in switched decade sub- ranges. The generator has output banana sockets; and a maximum wave output of 100mV to 5 volts peak to peak, which may be adjusted by a variable potentiometer control. The Function Generator has a selection to switch from sine, square and triangle waveform. The frequency of the signal is set on a dial, along with a multiplier range switch.
The model provides an ideal signal source for testing of servo and vibrating systems, medical and geophysical equipment, audio amplifiers, transducer circuits, filter circuits etc. The Function Generator uses high performance low drift circuitry to ensure low distortion and frequency stability. The entire circuit is laid on high quality printed circuit board, which is epoxy masked and component numbers are marked on it, for easy maintenance and servicing.
Technical Specifications | |
Frequency range | 1Hz to 1MHz in Six ranges |
Wave forms | Sine, Square and Triangle and TTL output |
Output amplitude | 0-20V peak to peak for Sine, Triangle 0-15V peak to peak for Square |
DC Offset | ±10V with adjustable to 0V |
Power Supply | 220volts /50Hz, +-10% |
Accessory | Connecting lead with banana plug and crocodile |
