Digital Impact Testing Machine
Product Description

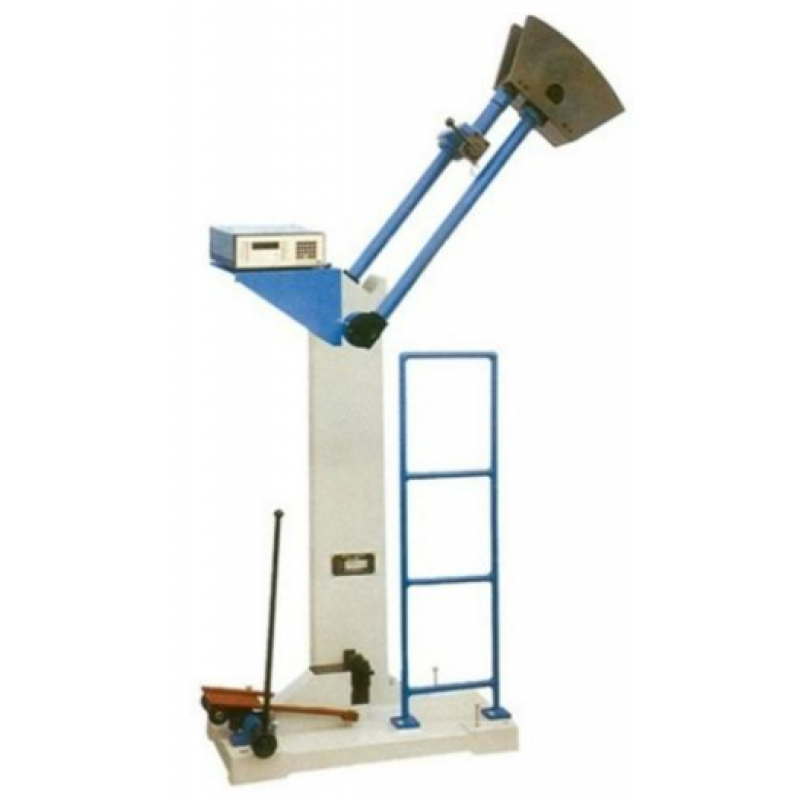

We deal in digital impacting machines which are tested on the parameters of process, material selection, quality control etc. These machines have robust construction, less maintenance, high accuracy, and easy operations. These machines are offered at market leading prices to the customers. We also have customized solutions for our major customers.
FEATURES
- Suitable for Charpy & Izod Impact tests on various materials.
- Rigid designs of machine frame & other parts assure minimum energy absorption during fracture which results in improved test accuracies.
- The highly stressed & wearing parts like support blocks & strikers are of special alloy steels duly heat treated.
- Model: AIT-300-N Conforms to IS:3766-2003, IS:1598-1977, IS:1757-1999, IS:1499-2003, BS:131-Part-I,II,III,IV
- Model: AIT-300-EN & Conforms to IS, BS Standard as above & also confirm to BS EN:10045-1993 (for Charpy).
- Model: AIT-300-D is a digital version of model AIT-300 EN
- Work of Pendulam principle, different between height of drop of pendulum before rupture and height of rise after rupture of specimen of Impact energy absorbed.
- Direct indication of Impact energy by specimen on large dial for AIT-300-N & AIT-300-EN and digital display for model AIT-300-D
Technical Specification
Parameters | TEST | ||
Charpy | Izod | ||
Initial potential energy ( Joules ) | 300 | 170 | |
Minimum scale graduation for AIT-300-N and AIT-300-EN (Joules) | 2 | 2 | |
Resolution for AIT-300-D ( Joules ) | 0.5 | 0.5 | |
Pendulum drop angle (degree ) | 140 | 90 | |
Impact velocity ( m/sec ) | 5.308 | 3.994 | |
Distance between axis of rotation and centre of strike(i.e.length of pendulum) (mm) | 813.5 | 813.5 | |
Effective weight of pendulum (kg) | 21.300 | 21.300 | |
Max. total friction and windage losses(% of initial potential energy) | 0.5% | 0.5% | |
Striking edge | |||
Angle at tip (degree) | 30 | 75 | |
Radius of curvature (mm) | 2 | 0.7 | |
Width of tip (mm) | 18 | - | |
Horizontal relief (degree) | - | 10 | |
Vertical relief (degree) | - | 5 | |
Test Piece Supports: | |||
Suitable for specimen (Max) (mm) | 10 X 10 | 10 X10 | |
Distance between supports (mm) | 40 (+ 0.5, -0.0) | - | |
Tapper of support (mm) | 11+1 | - | |
Radius of curvature at edge (mm) | 1 to 1.5 | - | |
Overall size (mm) approx | 750 (L) X 440 (W) X 1925 (H) | ||
Net weight (kg) approx AIT-300-N | 300 | ||
AIT-300-EN & AIT- 300-D | 450 |
