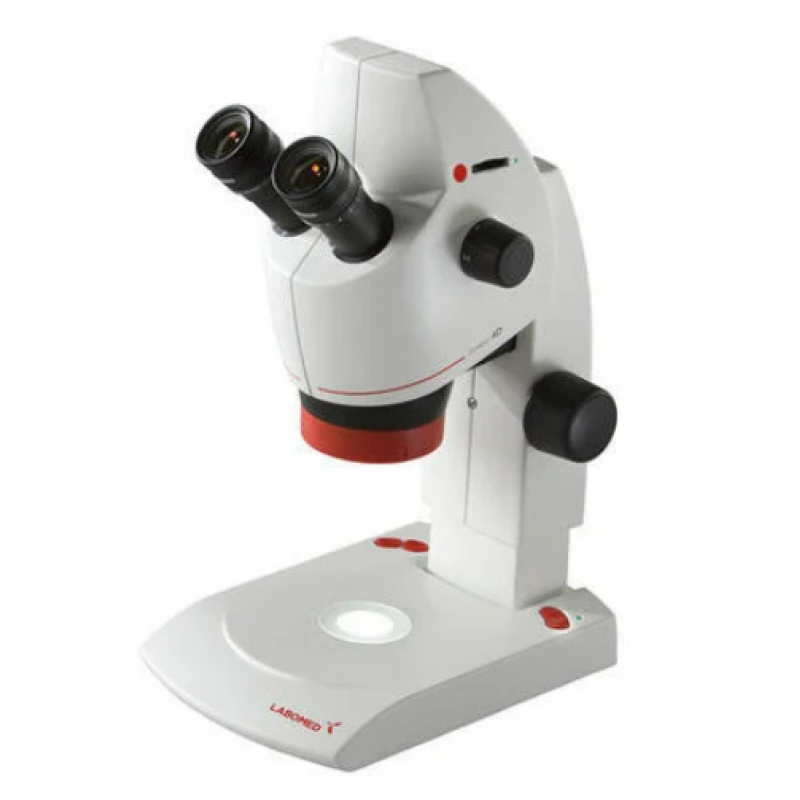

Digital Stereo Zoom Microscope

Brand	Labomed
Application	Laboratory
Zoom Ratio	4.4:1

Being a prominent firm in this domain, we are engaged in offering a distinguished assortment of Digital Stereo Zoom Microscope.

General Specifications:

• Dual light stable stand with ball bearing focusing controls with 45° inclined binocular head IPD 54-74.
• Magnification: 8x to 35x
• Camera: 5.0 mega pixel in-built
• Active area: 4.52mm x 3.40mm
• Sensor resolution: 2048 x 1536 pixels
• Pixel Size: 2.2μm x 2.2μm
• Digitization: 12 Bit RGB
• Pixel clock: 48 MHZ
• Dynamic range: 56 dB (measured at 10 ms exposure)
• Max. exposure: 2S (Automatic Exp, WB, BL)
• Frame rate: 30 fps (640 x 480)
• Standard: 2048 x 1536, Binning 1024 x 768, 640 x 480
• Digital interface: USB 2.0
• Illumination: Built-in Light

Technical Specifications:

• Zoom ratio: 4.4: 1
• Illumination: Incident/Transmitted combined illumination control buttons
• Incident Light: +/-30 degree oblique illumination and variable intensity control dial.
• Incident light method: Maximum intensity (10 LED's), front angled incident light (5 LED's), rear angled incident light (5 LED's).
• LED service life: Approx. 25,000 hours
• Electrical: Universal power supply (180V-240V, 50/60 Hz) UL, CE approved with imported power cord.
• Camera: 1/2.5” 5.0 mega pixel
• Packed in a styrofoam box with software CD, USB Cable, HDMI Cable, operation manual, dust cover, cleaning cloth, power cord.
