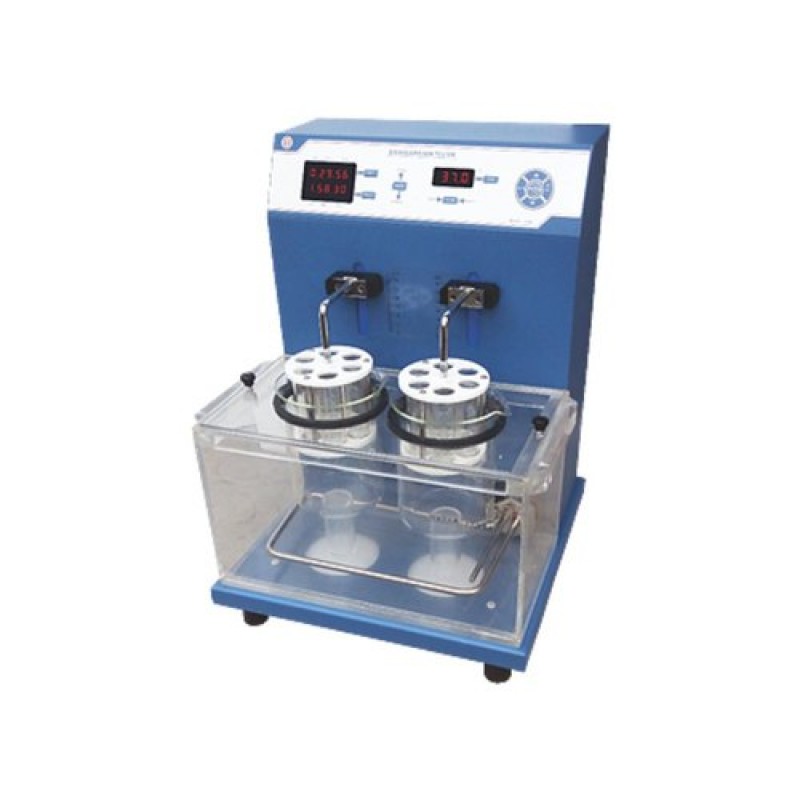

Disintegration Test Apparatus
Product Details :
Brand | EI |
Model Name/Number | 2901 |
Display | 5 Digit LED Display For Each of 2 Timers and 3 Digit LED For Temp. |
No. Of Motors | 2 Motors (1 For each Basket) |
No. Of Timers | 2 Nos. (1 For each Basket) |
Speed | 30 +-1 Strokes per minute |
Stroke Height | 55 +-1 mm strokes / minute |
Resolution | 1 Sec. |
Range | 20Degree C To 40Degree C |
Accuracy | +- 0.2 Degree C |
Reaction Beakers | 1000 ml |
Heater | 0.5 KW |
Dimension (L x B x H) | 365 x 375 x 510 mm approx. |
Weight | 17 Kgs. |
Power | 230V AC +- 10%,50/60 Hz, 44VA |
Other Details :
SALIENT FEATURES:-
- Complies with USP, IP specifications
- Extremely useful for pharmaceutical labs
- Microprocessor based, easy to use
- Seven segment LED display
- 10 Soft touch membrane type keys
- User friendly operation with current status indicators
- Supports Two USP baskets assemblies.
- Each basket is controlled by independent Timer and Motor
- Programmable temperature controller
- Auto parking of the basket at the top position at the end of the test
- External probe for beaker temperature validation
TECHNICAL SPECIFICATION:-
Keyboard
- 10 soft touch membrane keys
LED's
- 3 LED's for Temperture, 2 LED's for Timer and Manual Mode and 1 LED for Set Function
Temp. Control
- µP based using PT100/ Semiconductor sensor as per IP/USP
