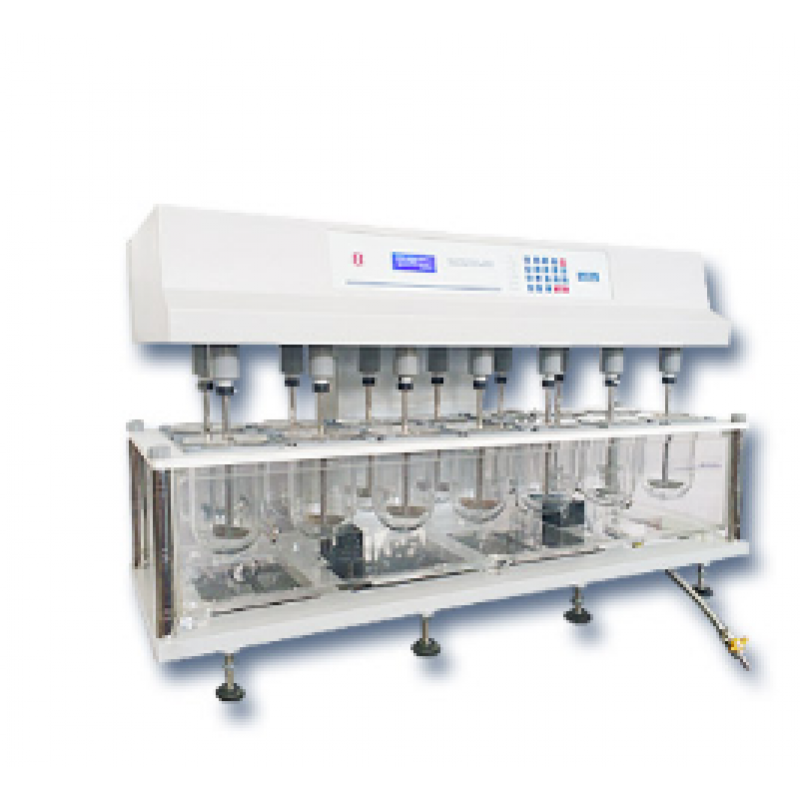

Dissolution Test Apparatus – 2914
Product Details:

• 14 Station (Model – 2914)
• 12 Station (Model – 2912)
• Complies with USP, IP specifications
• Extremely useful for pharmaceutical labs
• Programmable stirrer control (25 to 200 RPM)
• 20 x 4 line alphanumeric LCD display with backlit
• 19 Soft touch membrane type keys
• 20 independent programmable setups for routine & sustain mode with storage
• 200 sample storage facility
• Printer attachment facility

• Audio visual indicators for system status

• Easy to empty and clean water bath with bottom drainage

• Continuation of last sample run in case of power failure

• model-2914NwImage-zoom

Specifications

GENERAL
Stations	14 stations in Model – 2914
	12 stations in Model – 2912
Display	20 x 4 line alphanumeric LCD display with backlit
Keyboard	19 soft touch membrane type keys
LED’s	4 LED’s for different status indications. 3 LED’s for test status like Run, Alarm, End & 1 LED for heater ON/OFF status
Setup Data	20 different test setups available in routine and sustain modes
Printer Attachment	Provision for the attachment of dot-matrix printer with centronics parallel port interface available
STIRRER
Speed	25 to 200 RPM ±1 RPM
Resolution	1 RPM
Accuracy	± 1 RPM
TEMPERATURE
Range	30 to 50o C
Accuracy	± 0.2o C
Temp. Control	Microprocessor based using PT100/ Semiconductor sensor as per IP/USP
SAMPLE
Reaction Vessel	1000 ml jar with stirrer pedal and basket
Power Supply	230 V ± 10%, 50 Hz. AC
Heater	1900 W
