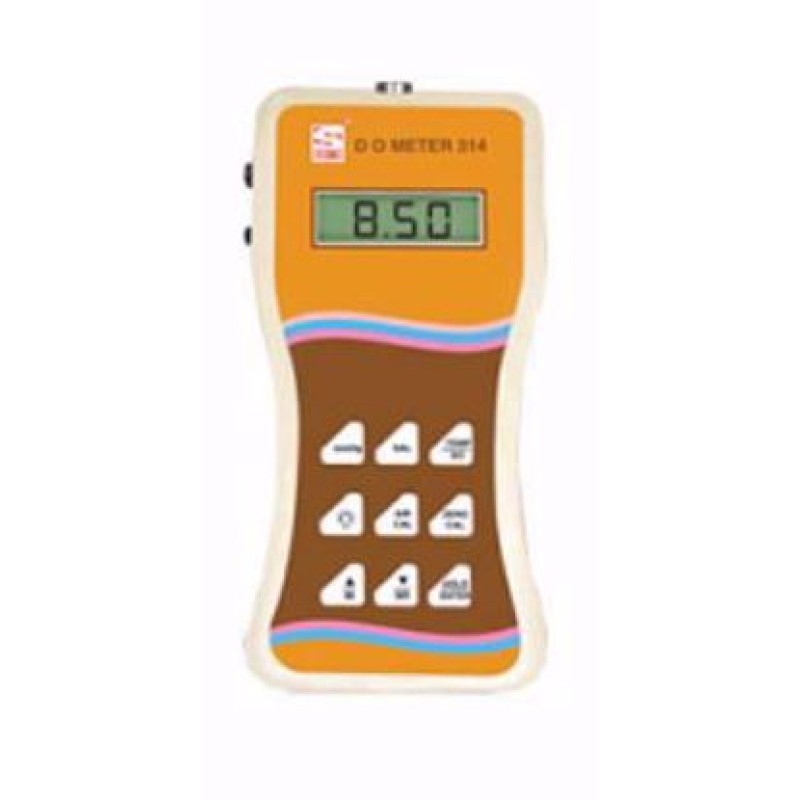

Dissolved Oxygen Meter
Product Details:
These meters have been designed and developed keeping in mind the users' experience and their need of finest working even during tough conditions in outdoors. This meter comes with durable construction, handheld design, and convenient touch keypad, these instruments let the users enjoy simple working both in laboratories and field. It offers multi-measurement units and employ Polarographic Electrode to measure dissolved oxygen in the water and display the oxygen level as % saturation from 0 to 200% or concentration from 0 to 20ppm (mg/L). The temperature range from 0 to 500 C. It comes with 9 to 12V adaptor.
- Microcontroller based
- Handheld, rugged and user-friendly
- 0 – 20 ppm Range
- 0 – 500 C Temperature Range
- Input for mains adaptor 9-12V
Specification:
Oxygen Measurement | |
Range | 0.20 ppm |
Accuracy | ±1% of full scale |
Resolution | 0.1 ppm |
Temperature Measurement | |
Range | 0 to 50℃ |
Accuracy | ±0.5℃ |
Resolution | 0.1℃ |
Temperature Compensation | 0 to 50℃ |
Salinity Compensation | 0-50 ppt |
Pressure (Barometric correction) | 500 to 1499 mm Hg |
Display | 1 line, 8 characters LCD |
Power | 9V battery or mains adaptor 9-12V |
Dimension | 80(W) x 42(D) x 175(H) mm |
Weight | 500 gm (Approx) |
Sensor D O Probe | Gold and Silver with FEP Gas permissible membrane |
Temperature Probe | PT 100 |
Accessories | (a) Combined D.O. and temp. Probe along with protective cover |
