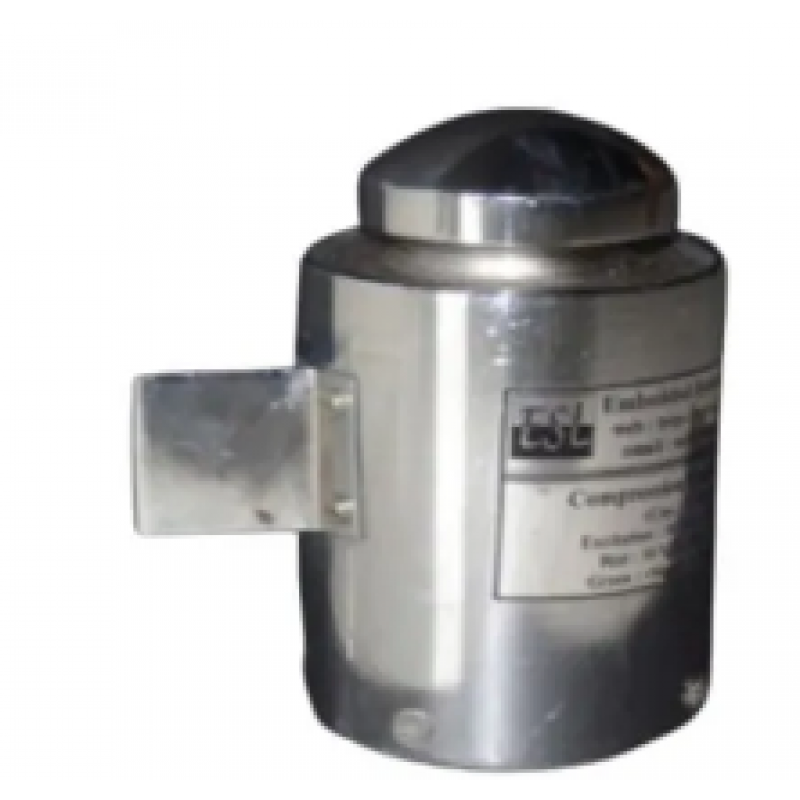

ESL Tension Compression Load Cell
Product Details:

Capacity	30 Ton
Material	Stainless Steel
Application	Truck Scales
Features	Hermetically Sealed
Temperature Effect on Zero	+/-0.020% FS/DegC
Temperature Effect on Output	+/-0.010% FS/DegC
Zero balance	+/- 1% FS
Maximum Safe Overload	150% FS
Recommended Excitation Voltage	5 to 15V DC
Insulation resistance at 50V DC	>= 1000 M Ohm
Compensated Temperature Range	-10 to +40 Deg C
Operating Temperature Range	-20 to +70 Deg C
Cable Length	2-20 m

EC are high performance, low cost, Cylinder-type loadcell with excellent sensitivity and repeatability. The design is suggested for the Compression, which includes Testing Machines, Mechanical Platform Scales and Weigh-bridges etc. And are also very widely used for the conversion of the existing machines to electronics.
Being a leading firm in this industry, we are deeply engaged in offering a high-quality range of Compression Load Cell.
Features

Multicoloumn construction
Hemetically sealed
Application:

Truck scale
Hopper Weighing
Industrial Automation
