BSE Detection System

Product Details :

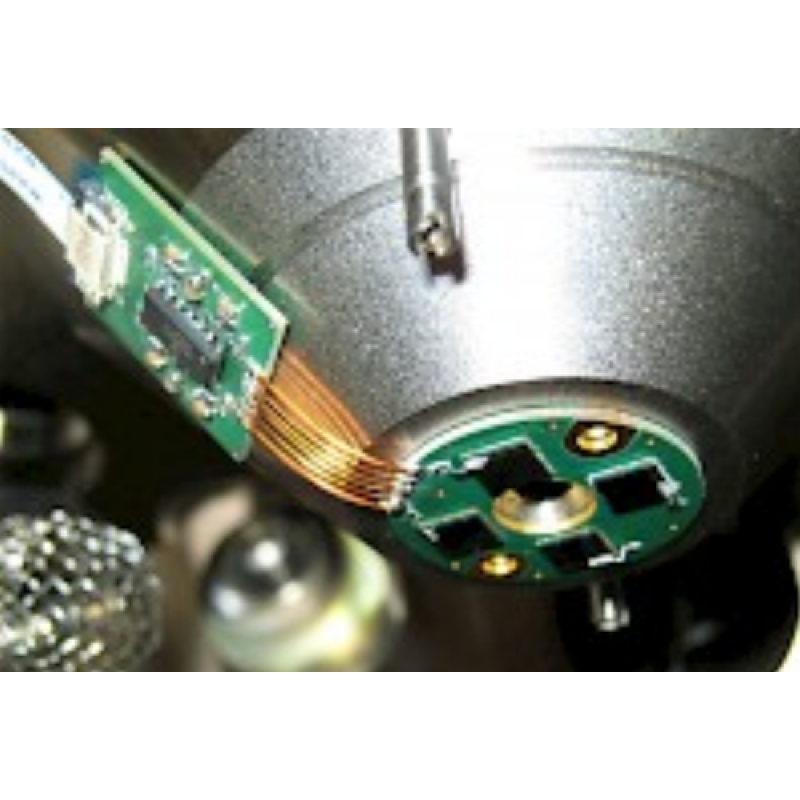

• 4-quadrant detector with integrated preamplifier, mounted below the objective-lens
• 10-pin electrical feed-through
• USB2 controlled video-processor with 4 inputs for the BSE-detector, 3 inputs for SE, CL, ...
• adjustment of brightness and contrast
• 8 step low-pass filter
• DISS5 software-module for video-processor control
• easy adjustment of Topo- and Compo-images in the DISS5 Channel Mixer
• simultaneous acquisition of the 4 separate BSE-signal
• optional live SEM Topography function in DISS5
• size of the detector: Ø 25 mm, h 1.2 mm
• size of the preamplifier: 22 × 18 mm
