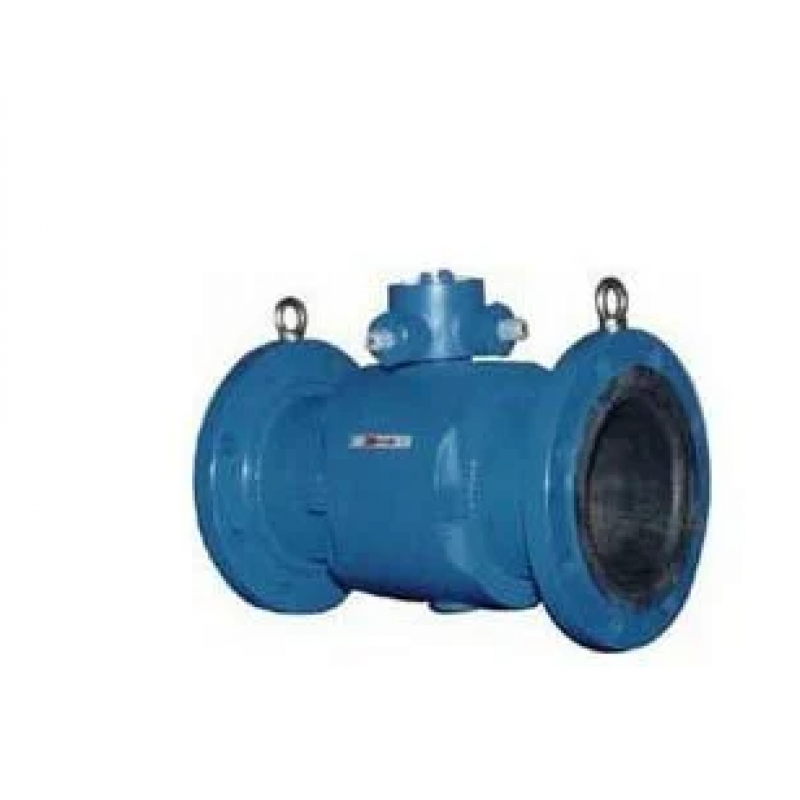

Electromagnetic Flow Meter
Product Details:

Flow Range	0.03 to 10 m/s
Repetabilty	0.3 %
Housing Material	Cast Aluminium
Connections	Flanged ( F Type) /Triclamp Between Flanges ( W Type)

The Electromagnetic Flow Meter works on the principle of electromagnetic induction and requires conducting fluid for measuring pressure. Our range of Electromagnetic Flow Meter is widely acknowledged for its accuracy, reliability and long service. The Electromagnetic Flow Meter provided by us comes with various accessories such as converters, indicating Totalisers, grounding rings etc. Furthermore, the Electromagnetic Flow Meter is extremely compact in design.

Principle of Operation
The Principle employs faradays law of electro magnetic induction Which States an electro motive Force (emf) is induced across the Conductor which Moves through the magnetic field at Right angles.The Induced Voltage Directly Propotional to the conductor (Fluid) Velocity.
 A Magnetic Field is genarated by Compact high density coils mounted to a short section of straight pipe.As a conductive Liquid Passes Thru The Pipe Section and It’s a Magnetic Field,a Voltage is genarated that is propotional to the Velocity of the conductive liquid.
The Voltage Induced Is Sensed by electrodes mounted by right angles to the magnetic field and in contact with the conductive liquid (or) Slurry. From the electrodes the voltage is transmitted to a Signal Converter Where it is conditioned to the desired output signals.
NXL Magnetic flowmeter genarates an open collector frequency ( Propotional to the Liquid Velocity ) of 10 KHz at Maximum Flow Rate. The Standard analog Output is 4-20 mA (or) 0-20 mA DC into a 600 ohms Max Load.
