Ac Regulators Using Triac, Anti Parallel Thyristor Triac
Product Details:
Brand | VE |
Usage/Application | Lab Experiment |
Usage | Laboratory |
Frequency | 50 Hz |
Voltage | 230 V AC |
Automation Grade | Manual |

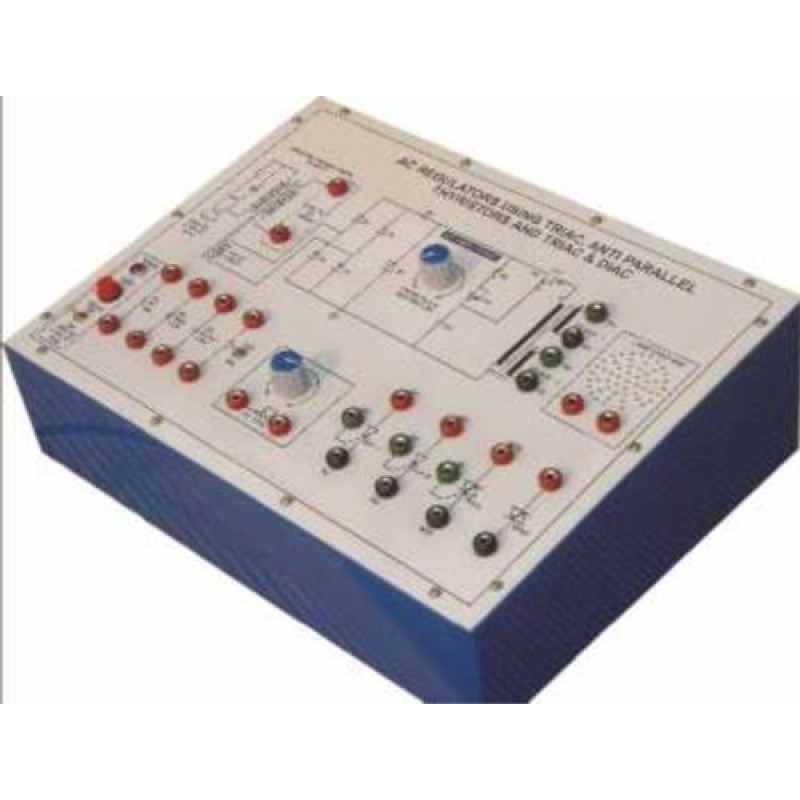

Power Electronic Training Board has been designed specifically for to study A.C. Regulators using triac, antiparallel thyristor and triac & diac.
Features :
The board consists of the following built-in parts :
01. 230V A.C. Isolated Transformer, Power 50 Watt.
02. 9V D.C. at 100mA Zener Regulated Power Supply.
03. Two silicon controlled rectifiers (SCR’s).
04. Uni Junction Transistor (UJT).
05. TRIAC.
06. DIAC.
07. Pulse Transformer 1:1:1.
08. Two potentiometers one for controlling UJT firing angle & other for varying load.
09. Bulb 40W, 230V A.C.
* Mains ON/OFF switch, Fuse and Jewel light.
* The unit is operative on 230V ±10% at 50Hz A.C. Mains.
* Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre.
* Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
