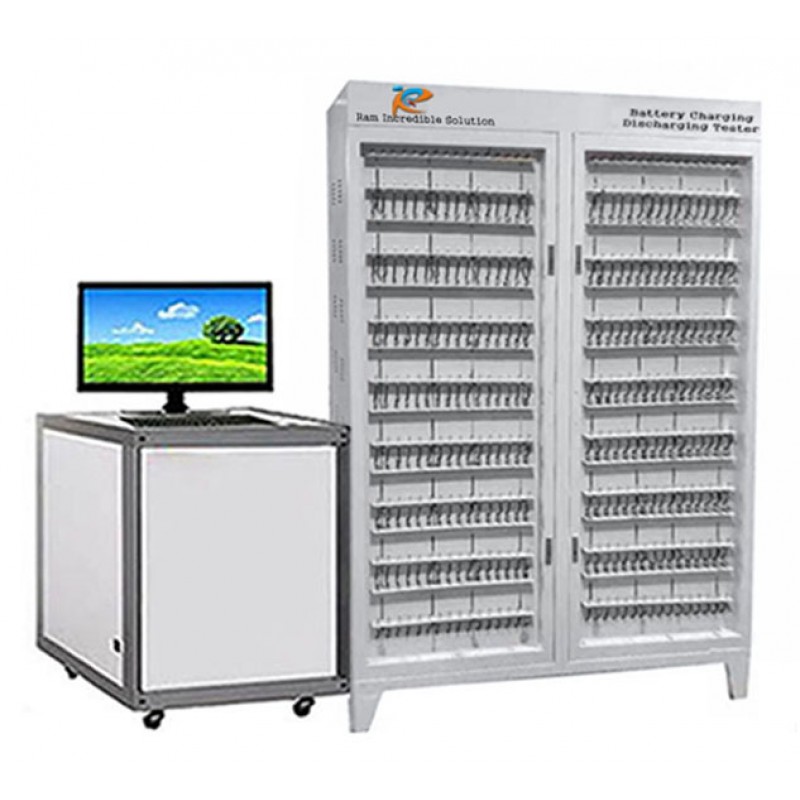

Battery Charging Discharging Tester

Product Details:

Specification/Additional DetailS:

• Specification
  Electricity requirement	110V AC or 220V AC selectable for universal use
  Power Consumption	200W-5KW
  Discharge and charge Current Range availability	Range: 6.0mA – 1000A Accuracy: ±(0.05% of reading + 0.1% of range)
  Discharge and charge Voltage range availability	Range: 0.5 – 200V programmable Accuracy: ±(0.05% of reading + 0.1% of range)
  Data register conditions	Time interval: 1 – 900s
  Max. measurement cycles	9999 cycles
  Channels	Multi channel independent programmable channels Each channel can set different working modes and functions independently
  Battery Holders	Two types of battery holders are included in the standard package: Multi alligator clips with cable for universal connecting Multi spring load holders with adjustable length for measuring cylinder battery
  Test Reports and Curves for analysis	Different types of real time waveform, graph can be created by software base on user definition. (Voltage-time curve, current-time curve, capacity-voltage curve, loops times-charge/discharge capacity curve, loops times-charge/ discharge efficiency curve, etc) Automatic Data reports are created by software. User can easily compare the performance of the batteries tested in channels both visually and statistically
