Air Quality Particle Counting Meter
Product Details:
Brand | PCE Instruments |
Power | Built-in 1000 mAh Rechargeable Battery or 5 V USB Port |
Display | 2.4 Full-Color LCD |
Display Resolution | 240 x 320 Pixels |
Battery Life | Up to 5 Hours Of Continuous Use At Full Charge |
Charging Time | Up To 2 Hours With Device Power Off |
Charging Interface | USB Port |
Operating Conditions | +50 DegreeC |
Storage Conditions | +60 DegreeC |
Particulate Matter Channels | PM 2.5 |
Particle Sizes (In Micrometers) | 2.5 |
Particle Concentrations | 2000 |
Resolution | 1 |
Temp Measuring Range | +70 DegreeC |

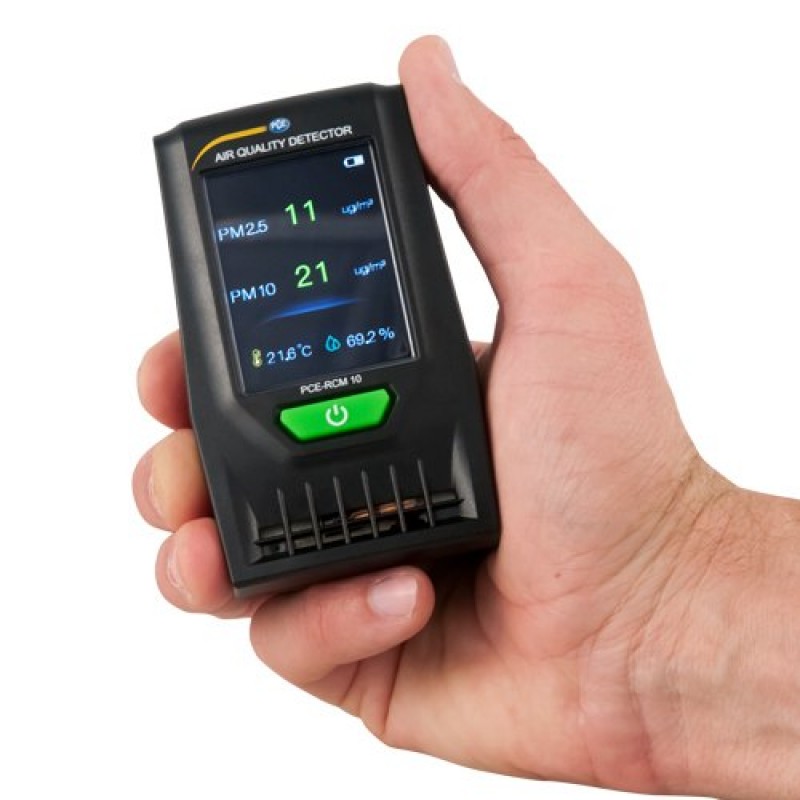

PCE-RCM 10 is a portable handheld particle counter used to monitor particulate matter (PM) concentrations in the air. Designed to aid in indoor air quality (IAQ) assessments, this particle counter also measures air temperature and relative humidity (RH). The particle counter can be powered either by the built-in rechargeable battery or the USB port. The USB port also is used to charge the battery. At full charge, the battery provides up to 5 hours of continuous operation or unlimited operation when plugged into a USB power source. The particle counter displays all measurements simultaneously on the device's 2.4" full-color LCD screen. PM values ??????appear the largest in the colors green, yellow, gold, orange, pink and red. This visual color-coding system makes it easy to recognize when PM concentration levels become dangerous, allowing for quick
- Particulate matter (PM) channels: PM 2.5, PM 10
- Particle sizes (in micrometers): 2.5 µm, 10 µm
General device specifications
Display
2.4" full-color LCD
Display resolution
240 x 320 pixels
Power supply
Built-in 1000 mAh rechargeable battery or 5 V USB port
Battery life
Up to 5 hours of continuous use at full charge
Charging time
Up to 2 hours with device power off
Charging interface
USB port
Operating conditions
0 ... +50 °C / +32 ... +122 °F
Storage conditions
-10 ... +60 °C / +14 ... +140 °F
Particle specifications
Particulate matter channels
PM 2.5 / PM 10
Particle sizes (in micrometers)
2.5 µm, 10 µm
Particle concentrations
0 ... 2000 μg / m³
Resolution
1 μg / m³
Temperature specifications
Temp. measuring range
-20 ... +70 °C / -4 ... +158 °F
Accuracy
± 1 °C
Resolution
0.1 °C
Relative humidity (RH) specifications
Humidity measuring range
0 ... 100 % RH
Accuracy
± 3.5 % RH (20 ... 80 % RH)
± 5 % RH (0 ... 20 % RH / 80 ... 100 % RH)
Resolution
0.1 % RH
General device specifications | |
Display | 2.4" full-color LCD |
Display resolution | 240 x 320 pixels |
Power supply | Built-in 1000 mAh rechargeable battery or 5 V USB port |
Battery life | Up to 5 hours of continuous use at full charge |
Charging time | Up to 2 hours with device power off |
Charging interface | USB port |
Operating conditions | 0 ... +50 °C / +32 ... +122 °F |
Storage conditions | -10 ... +60 °C / +14 ... +140 °F |
Particle specifications | |
Particulate matter channels | PM 2.5 / PM 10 |
Particle sizes (in micrometers) | 2.5 µm, 10 µm |
Particle concentrations | 0 ... 2000 μg / m³ |
Resolution | 1 μg / m³ |
Temperature specifications | |
Temp. measuring range | -20 ... +70 °C / -4 ... +158 °F |
Accuracy | ± 1 °C |
Resolution | 0.1 °C |
Relative humidity (RH) specifications | |
Humidity measuring range | 0 ... 100 % RH |
Accuracy | ± 3.5 % RH (20 ... 80 % RH) |
Resolution | 0.1 % RH |
