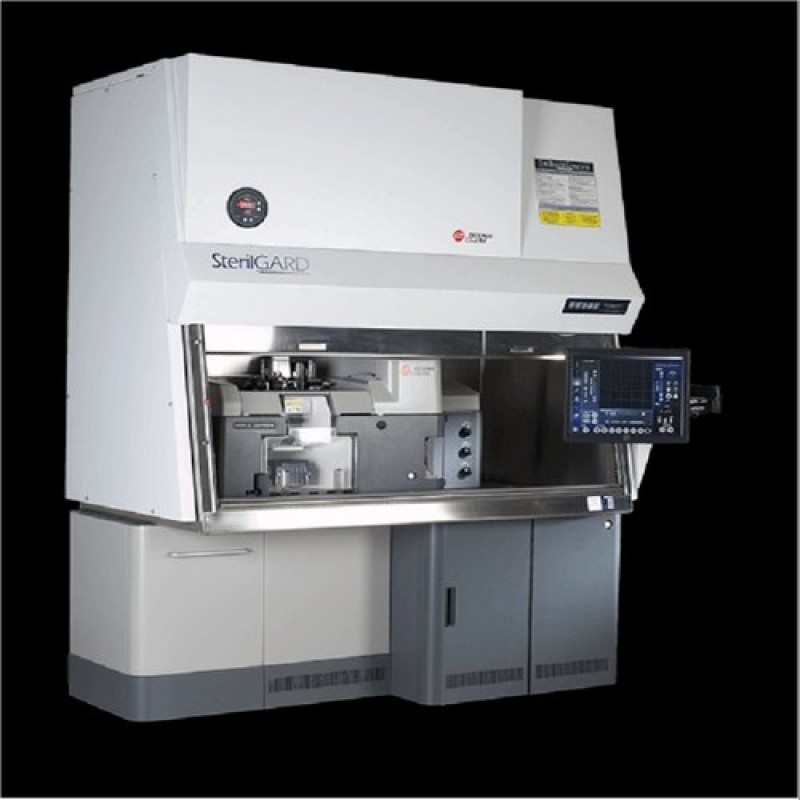

Beckman Coulter MoFlo Astrios EQs Cell Sorter
Product Details:

Brand	Beckman Coulter
Model Name/Number	EQs
Platform	Flow Sorter
Resolution	Resolves 0.2 micro-m diameter particles in scatter from background
Drop Dive Frequency	Adjustable up to 200 kHz
Flow Cell	Jet-in-Air Nozzle: 70 micro-m, 100 micro-m
Signal Processing	Log, height, area, width & log area for each parameter
Operating System	Windows 7 Professional
Software	Summit v62
Power Requirements	115V AC; 50/60 Hz at 15 A
Humidity Restrictions	20% - 80% (non-condensing)
Weight	567 kg (1250 lb)
Width	165 cm (65 in)
Depth	77 cm (30.3 in)
Height	129.5 cm (51 in)
Part Number	B52102

Simplify your most complex sorting tasks with the Astrios EQ Series of high-speed flow cytometry sorters. The Astrios EQs deliver powerful sorting capability while reducing complexity.
Easy, intuitive and flexible. Simplify your most complex sorting tasks with the Astrios EQs, featuring six-way jet-in-air proficiency that delivers powerful capability while reducing complexity. Leveraging the classic stable fluidic design and the electronic processing of the XDP, the new Astrios EQs and extended EQ sorters expand sorting capability with, not only a broad palette of laser options and 6-way sort capability, but by adding our unique enhanced Forward Scatter (eFSC) technology for submicron particle detection.
Available with up to 7 spatially separated lasers and 51 parameters
Six-way jet-in-air proficiency
Single forward scatter model
Features [patent] enhanced Forward Scatter (eFSC) technology

Optics:

• 7 laser / 7 pinhole configurable system; 355 nm, 405 nm, 488 nm, 532 nm, 560 nm, 592 nm, 645 nm.
• Single Multi-Laser Shaping Optic (MLSO) for fiber-coupled lasers

• Flat-Top beam profile on fiber coupled lasers increases beam stability and alignment ease
• 7 lasers aligned through two alignment stages for quick sorter set up


Performance:

• IntelliSort II: Beadless drop delay determination and monitoring
• 6-way sorting with a variety of collection devices (temperature control for all sort outputs available with water bath option)

• Reproducibly sort up to 1536-well plates (due to historically ???stable fluidics)
• Only sorter capable of 70,000 sort decisions/second validated ???performance


Electronics and Software:

• Electronic capability to simultaneously detect 44 parameters
• > 100,000 events/second acquisition rate validated performance

• 1 billion events .fcs files with no parameter limit
• Up to 2 FSC channels including user-selectable FSC masks
• Optional additional SSC detection off each wavelength greater than or equal to 405 nm


Biosafety:

• Custom Baker SterilGARD BSL2 cabinet
• Single turnkey aerosol evacuation direct from sorter sort chamber to HEPA enclosure

• Quick release nozzle design for easy access to nozzle tip
• CyClone plate arm with wiper seals back of sort chamber
