Digital Multimeter

Product Details:

Brand	PCE Instruments
Weight	Approx. 3713 g
Interface	Usb Interface
Supply voltage	240V adjustable
Environmental conditions	23 DegreeC
Dimensions	310 x 240 x 120 mm

The digital multimeter is a multimeter for a stationary workplace. In addition to measuring current, voltage and resistance, the digital multimeter can also use two thermocouples to measure the temperature and also determine the conductivity. So the digital multimeter can perform a variety of different measurement tasks. A direct connection to a PC can be established via the USB interface on the back of the digital multimeter. The software from the digital multimeter can then be used to carry out live analyzes using graphics and tables.
Another special feature of the digital multimeter is the PASS / FAIL function. With this function, target ranges for the measured values ??????can be set for each measuring function. Depending on the actual measured value, a "PASS" (passed) or a "FAIL" (failed) is then shown on the display by the digital multimeter. The digital multimeter is therefore used, for example, in quality control. With the help of the adjustable handle, the digital multimeter can be adjusted for ergonomic use by the operator. The handle of the digital multimeter can also be used to change the workplace. The housing of the digital multimeter has a rubberized edge protection, which prevents damage.
- Table multimeter with reinforced housing
- USB interface for PC connection
- PASS / FAIL function for quality control
- extensive measuring functions
- Relate the measured value
- Measured value with bar graph display

Additional Information:

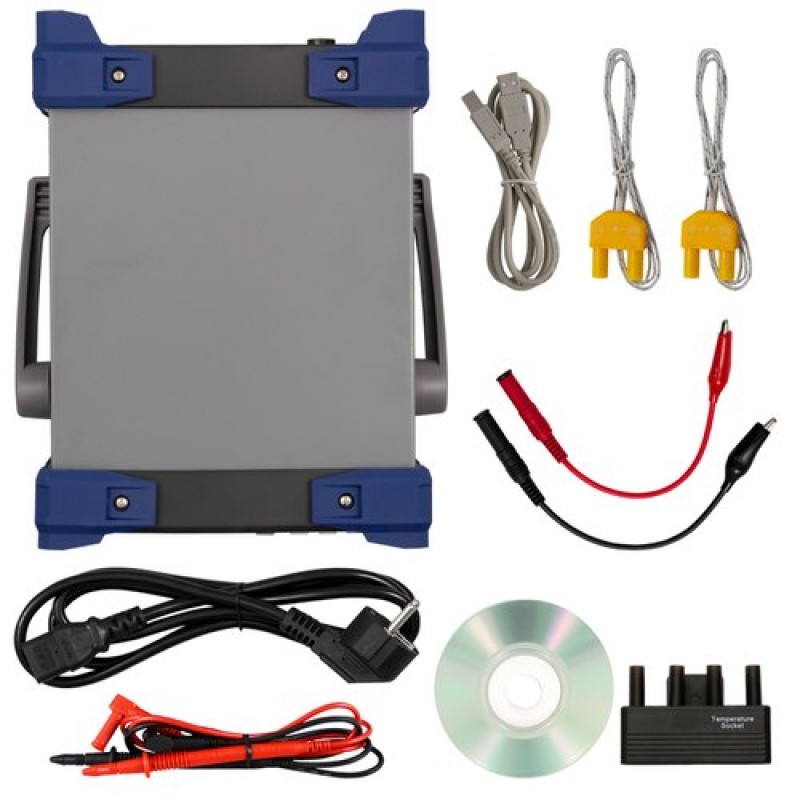

• Packaging Details: 1 x Digital multimeter PCE-BDM 20 1 x USB cable 1 x Connection adapter for thermocouples 2 x Thermocouple type K x software 2 x Crocodile clip 1 x IEC cable 1 x Instruction manual
