Digital Multimeter

Product Details:

Brand	PCE Instruments
Weight	1972 g
Display	97 mm x 56 mm
Display updating	Average between 0.5 ... 1 second
Storage rate	A storage rate of 0 means manual storage
Corrupt data	<0.1% of the data is typically faulty
SD card capacity	32 GB
Select measuring range	Automatic and manual
Additional function	Freeze measured value
Polarity	In reverse polarity
Zero	Automatically
Interface	RS232
Power supply power supply	Primary: 230V, 50 Hz, 0.3 A
Dimensions	292 x 236 x 98 mm

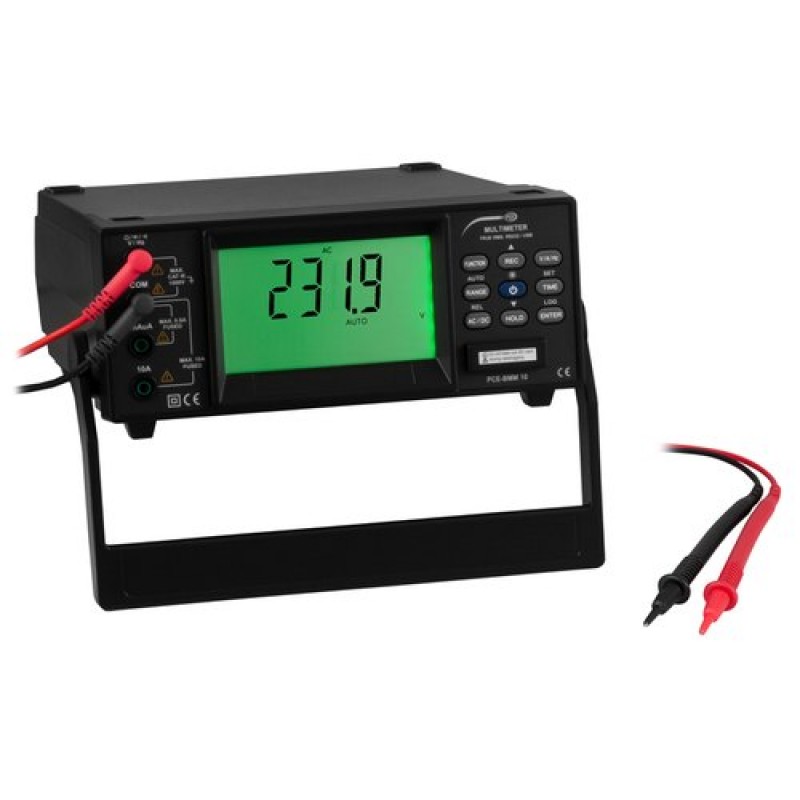

This PCE-BMM 10 digital multimeter is equipped for mobile as well as stationary operation. As a supply voltage, the table multimeter with mains voltage (AC power adapter) as well as in battery operation can be used. A large range of functions of the measuring ranges leaves hardly anything to be desired. In addition to accurately capturing VDC, VAC, ADC, AAC and resistance, this desktop multimeter also determines the capacity and frequency. An acoustic continuity test and a diode test are also integrated in the desk multimeter.
In addition, the measured values ??????can be stored on an SD card of up to 32 GB on the table multimeter using the data logger function. As a result, long-term recordings of electrical components or assemblies, machinery and equipment are possible. Thanks to the large and illuminated display, the readings are very easy to read. This table multimeter can optionally also be laboratory-calibrated and equipped with an ISO calibration certificate (at the time of initial order or recalibration, eg annually).
- Automatic / manual range selection
- Also suitable for mobile use
- Continuity test, diode test
- TrueRMS measurement
- RS-232 interface
- Mains / AC power adapter and battery operation
- Frequency measurement up to 60 MHz
- ISO calibration optionally available

Additional Information:

• Packaging Details: 1 x Digital Multimeter PCE-BMM 10 1 x Set of test leads 1 x SD card 1 x User manual
