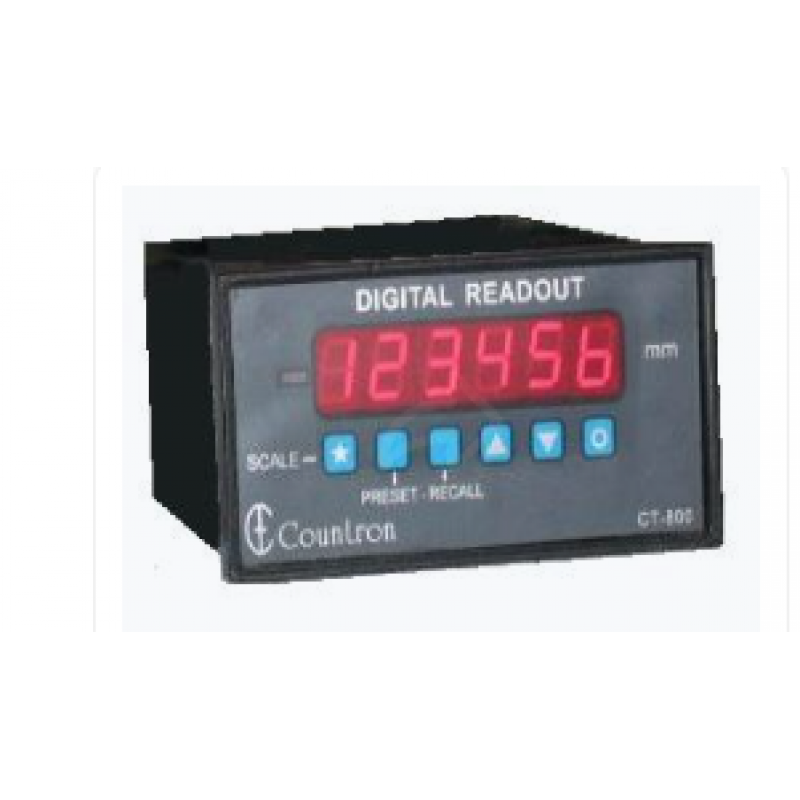

Digital ReadOut Indicator
Product Details:
- 6 digit bright 7 segment Red LED display for count display
- Scale factor user settable from 0.00001 to 9.99999
- 6 digit Preset value user settable
- Pulse multiplication technique used for counting improves resolution 4 times.
- Solid state memory to save user settings and count on power failure
- Program Lock to prevent tampering with settings
- Aesthetically designed front panel with touch type membrane keys
- Housed in plastic ABS cabinet
Specification
Display | 6 digit 7 segment Red LED display for count display |
Input Signal | +5V pulses from Channel A and Channel B of rotary/linear encoder |
Encoder Supply | 12V DC |
Scale Factor | User settable from 0.00001 to 9.99999 |
Count per Rev. | (Pulses/Rev from encoder) x Scale Factor |
Preset Value | User settable from -999999 to 999999 |
Count Range | -999999 to +999999 |
Memory | EEPROM to save settings and current count on power failure |
Program Lock | By rear jumper (open to lock) to prevent changes in |
Size | 48mm x 96mm |
Depth | 180mm |
Supply | 220V AC ± 15% |
Ambient | 0-55˚C |
Humidity | Up to 90% (non-condensing) |
