Haemoglobin Meter 1315
Haemoglobin Meter 1315
Product Details:
  • Direct Display in Hb. units
  • 1 ml Sample Volume
  • Highly Stable & Easy To Operate
  • Storage of Factor in Memory

model-1315NwImage-zoom

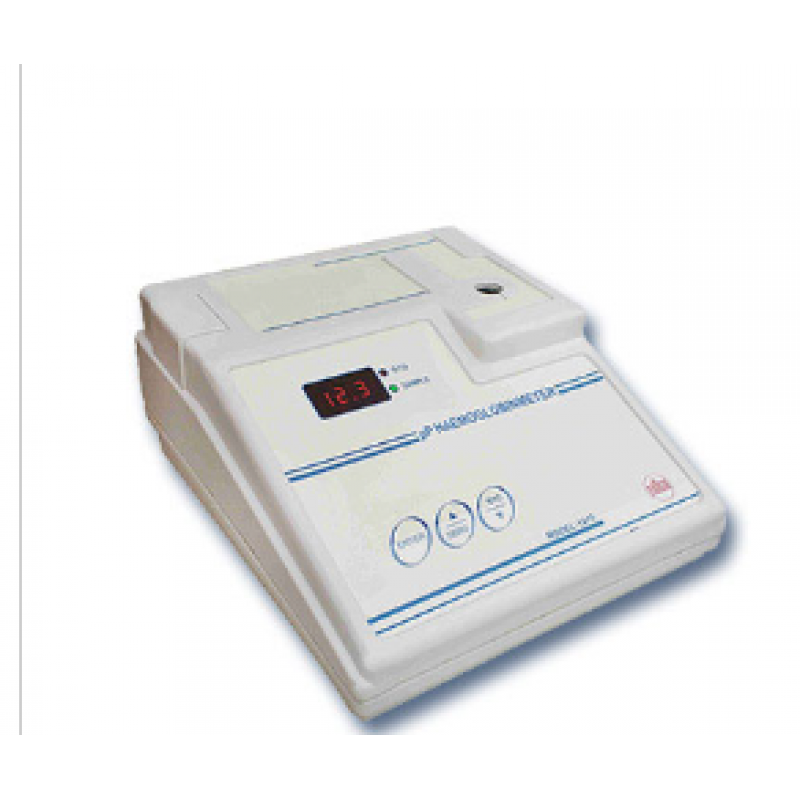

Microprocessor Haemoglobin Meter – 1315 is used to determine the haemoglobin concentration in the blood sample. The measurement haemoglobin concentration is carried out at wavelength of 546 nm. Using state-of-the-art LED technology the green light produced is projected through the sample and measured by sensitive photodiode. The measurements are made using cyanmethemoglobin method used through the world.
Heamoglobin is an iron-containing protein found in the red blood cells. It enables the red cells, to carry oxygen from lungs to the rest of the body and carry carbon dioxide back. The haemoglobin level indicates the blood’s oxygen-carrying capacity and can play a major role in the early diagnosis of many illnesses such as thelsemia, sickle cell anemia, leukemia, malaria and hook worm etc.
Specifications

Measuring Method
Cyanmethemoglobin
Measuring Range
0 – 30 gm/dl of Hb.
Dilution Ratio
1:25 I
Sample Volume
1 ml
Display
3 Digit 7-Segment Red LED Display
Wavelength
546 nm
Keyboard
3 Keys, Soft Touch Memebrane Type
Zero Setting
Automatic
Calibration
Automatic
Detector
Highly sensitive silicon photodiode
Power
230 V ± 10% AC, 50 Hz
Dimensions
(L x B x H)
195 x 235 x 105 mm (Approx.)
Weight
2.5 Kg. (Approx.)
Accessories
Matched Test Tube: (A set of 5),
Operation Manual and Dust Cover
