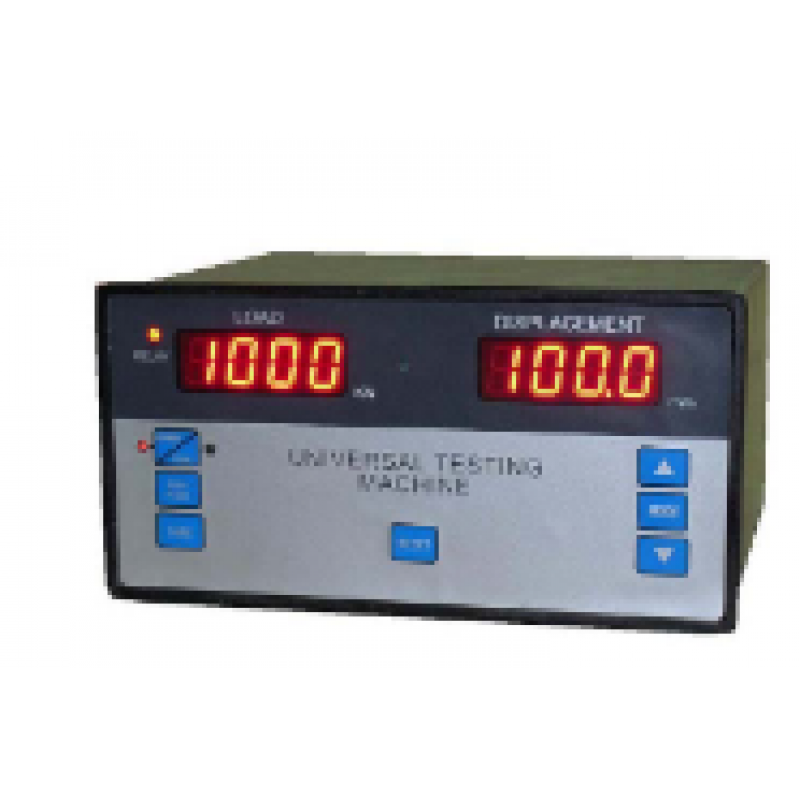

PEAK LOAD AND DISLACEMENT RECORDING INDICATOR
Product Details:
- Separate displays for load indication and displacement
- Range for load indication corresponding to 4-20mA input digitally settable from front panel
- Calibration of displacement for different rotary encoders
- Peak/Normal mode selectable
- Up to 9 peaks can be recorded and recalled for Load and Displacement
- Buzzer annunciation at Peak
- Relay output for cut-off protection for load, displacement as well as breaking load
- Digital tare for load and displacement provided to remove initial error
- Non-volatile memory for saving configuration
- Configuration lock at rear to prevent tampering with Range
- Aesthetically designed front panel with membrane switches
Display | 4 Digit 0.56” 7 segment Red LED display for Load (KN) |
Range | o Load : 1KN to Range |
Accuracy | ±0.1% of Full Scale ± 1 digit |
Input | From 2 wire loop transmitter giving 4-20mA output |
Relay Logic | When Relay ON for Load ≥ Set Load Limit |
Normal/Peak Mode | Selectable from front panel with LED indication of mode |
Peak Read | 9 peaks of both load and displacement with facility to reset memory |
Peak Detection | Peak hold resettable from front Reset Switch or by a parallel rear external contact |
Tare Facility (Zero) | Digital Tare using front panel Tare switch (for removing initial offset error). Tare also resets Displacement to Zero. |
Memory | Non-volatile EEPROM to save settings |
Configuration Lock | On rear terminals to prevent unauthorized/accidental alteration of Range using front switches |
Supply | M220V AC ± 15% @ 50/60Hz |
Dimensions | Front Fascia: 96mm x 192mm Cut Out : 92mm x 188mm |
