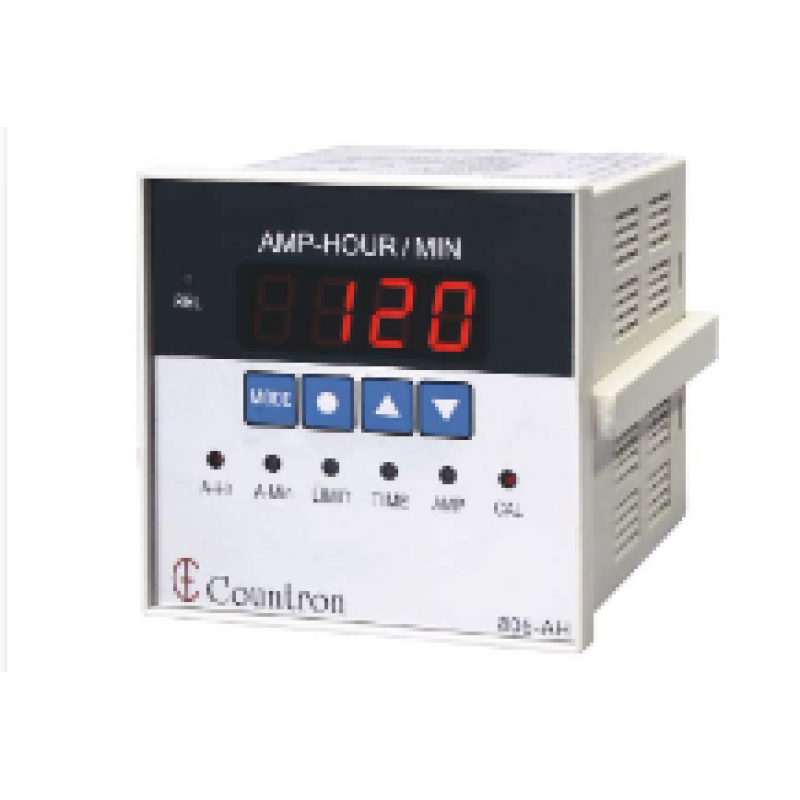

Programmable Ampere Hour Meter
Product Details:
Features

• Shunt calibration programmable up to 9999 for 75mV
• Ampere-Hour/Minute selectable

• Ampere-Hour stored on power failure
• Time relay with on time settable in Mins:Secs

• Rear calibration lock to prevent tampering with shunt settings
• Aesthetically designed front panel with membrane switches


Specification

Display	4 Digit 7 Segment Red LED display for Ampere 1 Red LED to indicate status of Relay contacts 6 Red LEDs to for configuration settings
Shunt Calibration	Maximum 9999 Amps corresponding to 75mV settable from front panel
Set Limit	Settable from 0-9999
Resolution	1AH/1AM
Time Relay	Relay contact with time settings in Mins:Secs
Contact Rating	NO-P-NC @ 5Amps/220V AC
Memory	Settings and Ampere-Hours saved in solid state EEPROM
Lock	By rear jumper to prevent accidental tampering with shunt settings
Supply	220V AC ± 10% @ 50/60Hz
Size	Front Fascia 96mm x 99mm Depth 135mm. Cut Out : 91mm x 91mm.
Weight	800 grams
