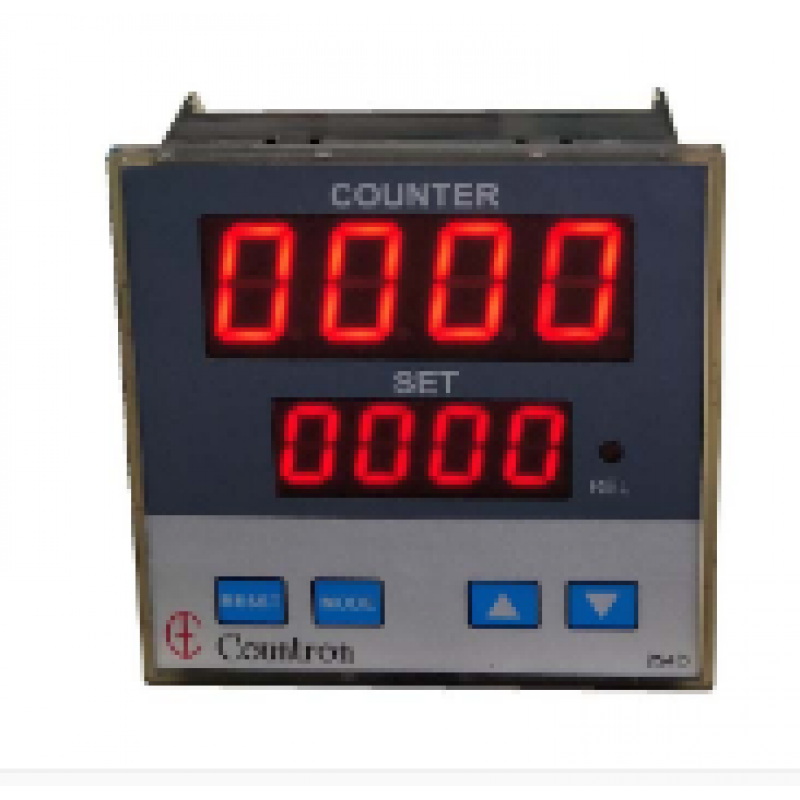

Programmable Counter
Product Details:

• 4 Digit Preset Counter with separate displays for Count and Set Limit
• Large 0.8” display for count, 0.56”

• Programmable Multiplying and dividing factor.
• Pre-settable Batch Counter

• Up/Down Counting Selectable
• Normal/Auto-Reset with Time setting

• Non-Volatile memory to hold settings and counts
• Password for Program configuration lock


Specification

Display	4 Digit, 7 segment LED display (0.8” height) for Count 4 Digit, 7 segment LED display (0.56” height) for Limit
Range	Maximum Count of 9999
Set Points	Single set points programmable from 1-9999
Batch Limit	Batch limit setting from 0 to 999
Operating Modes	a. Auto Mode (Time Settable) b. Manual Mode (Delay set to Zero)
Count Inputs	a. Voltage Pulse : 3V to 30V DC amplitude from proximity switch b. Potential free contact from limit switch, relay or micro switch
Input Frequency	0 to 1 KHz
Sensor Supply	10V DC, short circuit protected
Multiplying Factor	Programmable from 1-99
Division Factor	Programmable from 1 to 99
Reset Input	a. Front Panel b. Remote reset by rear terminals
Relay Outputs	NO-Pole-NC contact rated at 5Amp @ 230 V AC
Memory Retention	10 years
Configuration Lock	By Password
Mounting	Panel Mounting
Size	96mm x 96mm. Depth 50mm
Weight	Approx. 375 gms.
Operating Temp.	0-50˚C
Humidity	95% RH
