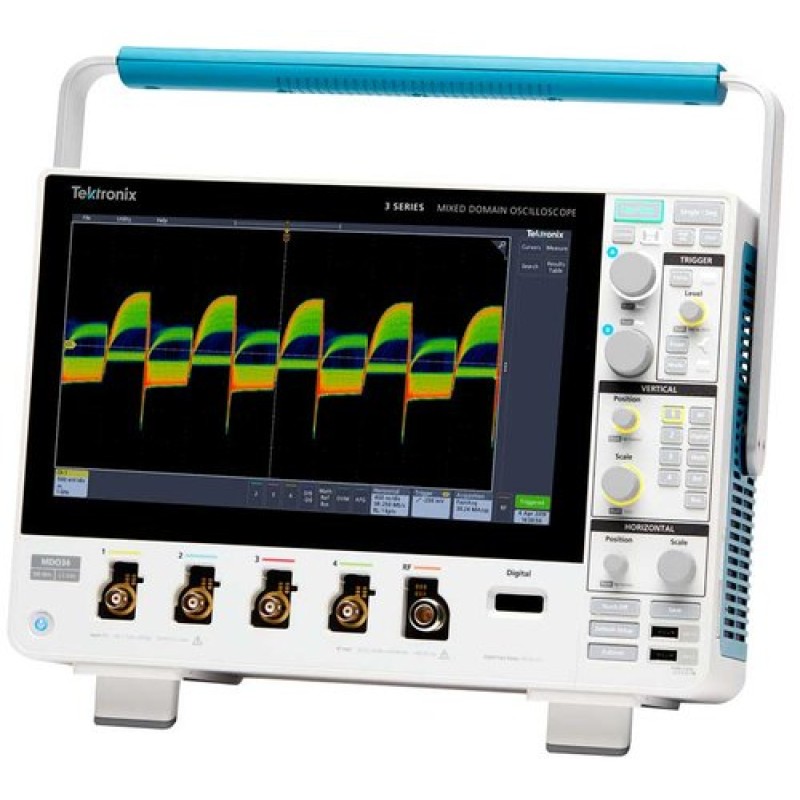

Digital Oscilloscope with Touch Screen

Product Details :

Key performance specifications

• 2 and 4 analog channel models
• 100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz bandwidth models
• Bandwidth is upgradable (up to 1 GHz)
• Up to 5 GS/s sample rate
• 10 M record length on all channels
• >280,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9 pF capacitive loading and 250 MHz or 500 MHz analog bandwidth

Spectrum Analyzer (optional)

• Frequency range: 9 kHz - 1 GHz or 3 GHz
• Ultra-wide capture bandwidth up to 3 GHz

Arbitrary Function Generator (optional)

• 13 predefined waveform types
• 50 MHz waveform generation
• 128 k arbitrary generator record length
• 250 MS/s arbitrary generator sample rate

Digital Channels (optional)

• 16 digital channels
• 10 M record length on all channels
• 121.2 ps timing resolution

Serial Bus Decode, Triggering and Search (optional)

• Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, CAN, CAN FD, LIN, FlexRay, MIL-STD-1553, ARINC429, and Audio standards

Digital Voltmeter / Frequency Counter (Free with product registration)

• 4-digit DC, AC RMS, and DC+AC RMS voltage measurements
• 5-digit frequency measurements
