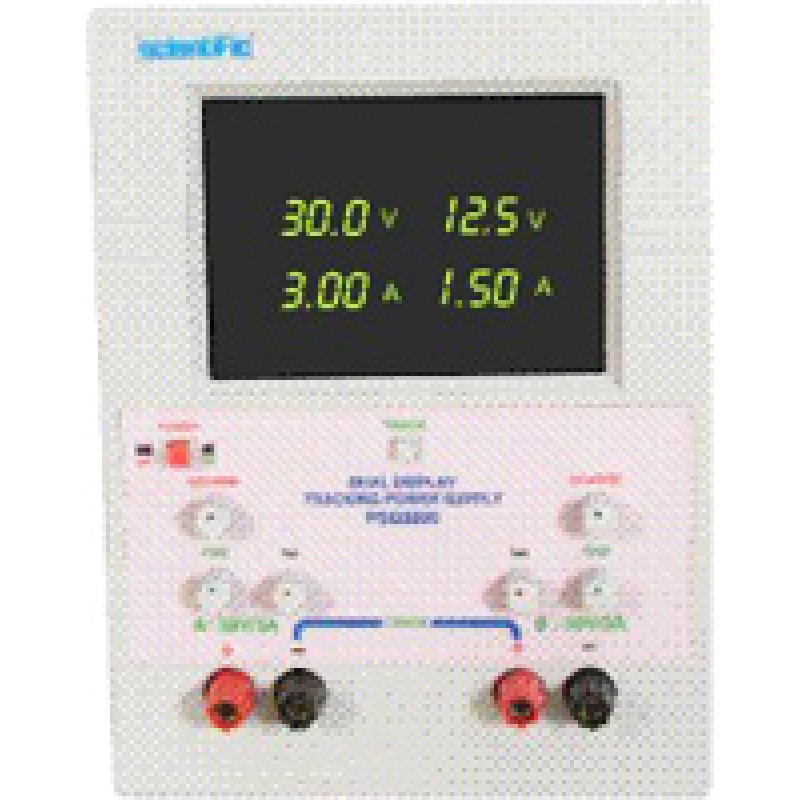

2X30V-3A DUAL DISPLAY TRACKING POSER SUPPLY

Model : PSD3205

Product Details :

• The PSD3205 is a Dual display tracking Power Supply with 30 V 3 A . Power Supply designed as a Constant Current (CC) and Constant Voltage (CV), source for laboratories, industries and field testing applications, featuring Low Power Loss , compact and light weight . It provides isolated and floated adjustable 0 to 30 V, 3 A when used as independent or with common ground with tracking mode output, is ideally suitable for complex Analog and Digital Testing. The floated DC outputs allow operation in series or parallel.
• A dual 3 digit display for Voltage and Current for each power supplies are used to read the instantaneous values simultaneously. In addition to low residual ripple and noise, as well as excellent line and load regulation. The PSD3205 is provided with all protective circuits to ensure trouble free operation.

"Order -NABL accredited certificate traceable to National Standards."

Features :

• DC 0 to 30V ,3A Independent & Tracking Power Supply
• Constant Voltage & Constant Current
• Dual Display for Voltage and Current for both Power Supplies
• Adjustable Current Limiter
• Protection against overload & short circuit
