MULTIPLE POWER SUPPLY

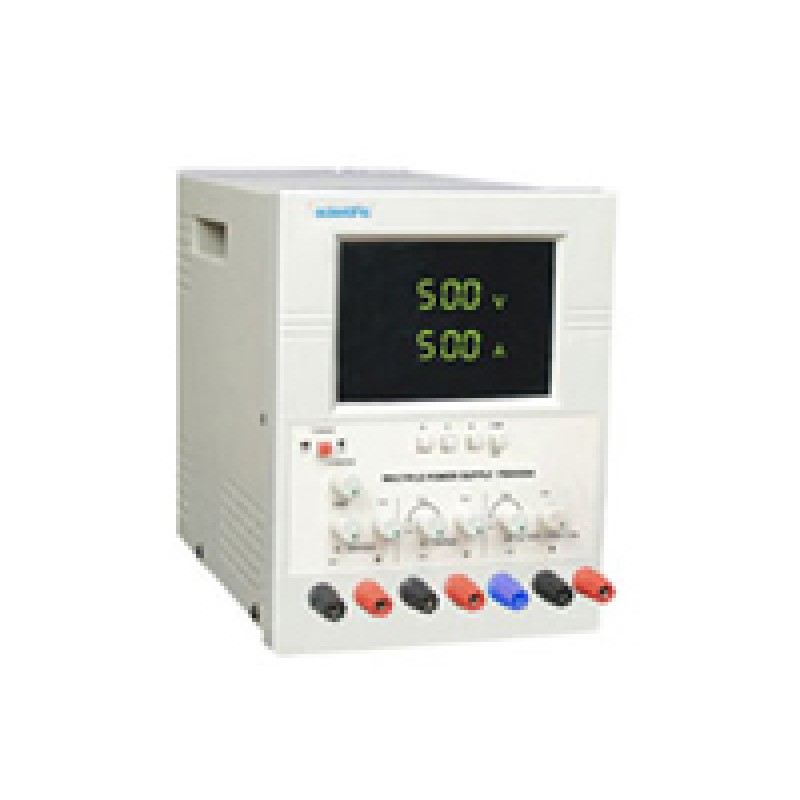

30V-2A, 0 TO +/- 15V-1A, 5V-5A MULTIPLE POWER SUPPLY

Model : PSD3304

Product Details :

  • The PSD3304 is a Dual tracking Power Supply with 30V,3A. It is designed as a constant current (CC) and constant voltage (CV) source for laboratories, Industries and field testing applications, featuring low power loss, compact and light weight .It provides isolated and floated adjustable 0 to 30V,3A DC output when used as independent or with common ground with tracking mode output, is ideally suitable for complex analog and digital testing. The floated DC outputs allow operation in series or parallel.
  • A dual 3 digit display for voltage and current switchable are used to read the instantaneous values. In addition to low residual ripple and noise, as well as excellent line and load regulation. The PSD3204 is provided with all protective circuits to ensure trouble free operation.


" Order -NABL accredited certificate traceable to National Standards."


Features :

  • DC 0 to 30V/2A ,0 to +/-15V /1A Tracking, 4.5 to 5.5 /5A
  • Digital Display for voltage and current
  • Protection against overload and short circuit
  • Adjustable current limiter
  • Constant current & constant voltage
