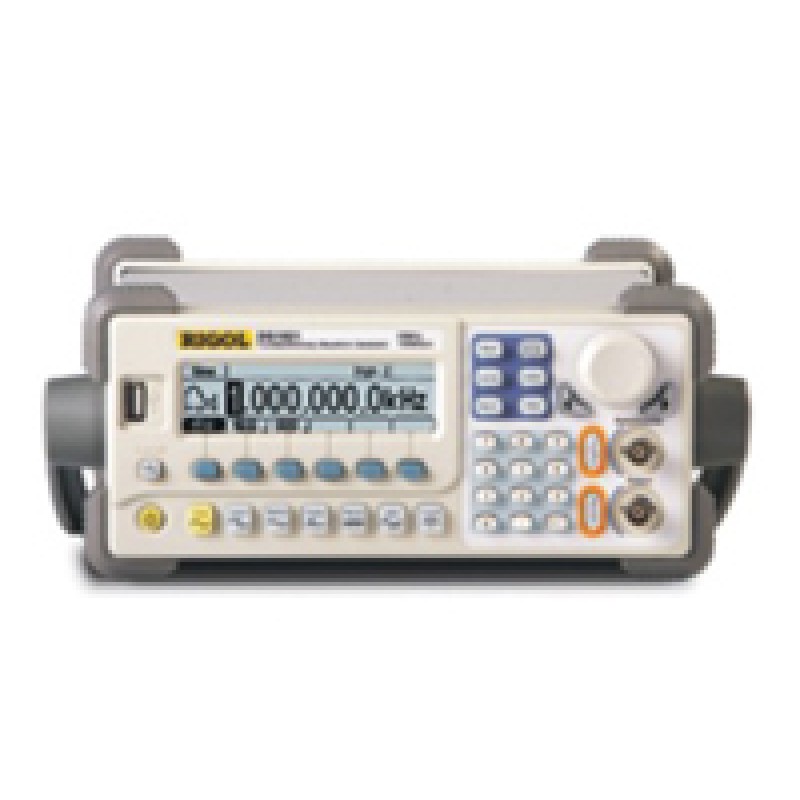

15/20 MHZ FUNCTION GENERATORS

Model : DG-1000 SERIES , DG-1021 , DG-1011

Product Details :

        The DG1000 series Function Generator offers standard and arbitrary signals from 1 uHz to 15MHz and 20 MHz. These function generators find applications in simulation of sensors and environment signals. Application includes circuit functional tests, serial bus test, IC , component tests. etc. These function generators are equipped with interfaces for connecting as signal generator component to the Automatic Test Equipment setup.

Features :

• DDS technology: Output signals become more accurate and stable with low distortion,
• 100 MSa/s of sample rate,
• 14 bits of vertical resolution, 4k points of memory depth
• 10 standard waveforms: Sine, Square, Ramp, Pulse, Noise, Exponential Rise, Exponential Fall, Sinc, Cardiac, DC
• Arbitrary waveform defined by user
• Versatile modulation and variety of waveforms: AM, FM, PM, FSK, Sweep, Burst
• External modulation source,
• External clock reference (10 MHz),
• External trigger input
• High accuracy and wide band width frequency counter range up to 200 MHz
• USB Host, to support USB disk storage
