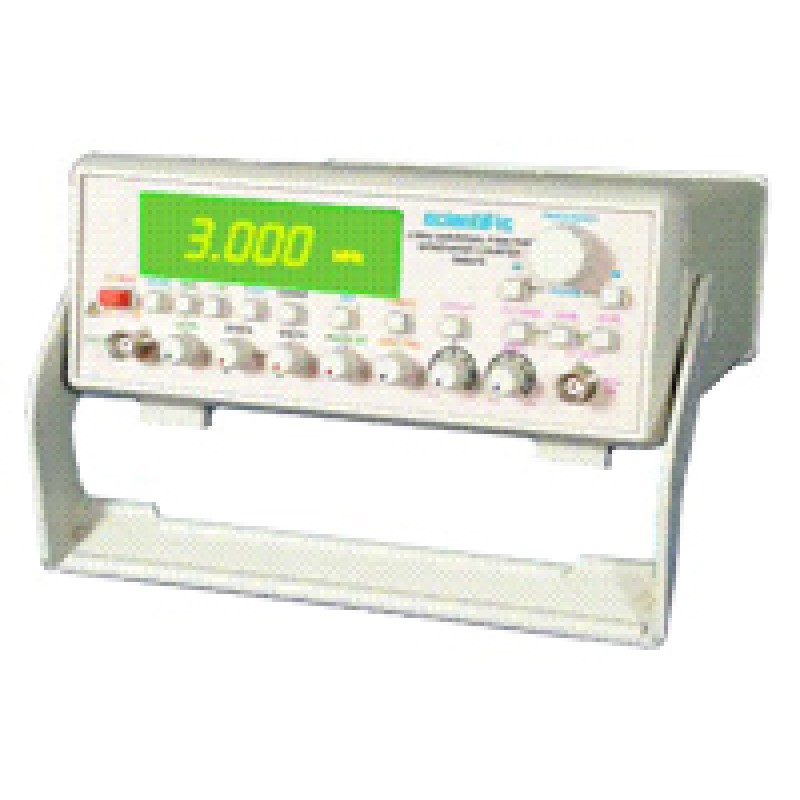

3 MHZ AM FM FUNCTION - PULSE GENERATOR COUNTER WITH INT AM
Model : SM-5075
Product Details :
- The various signals available from the SM5075 Function Generator make it a versatile signal source useful for most measurement and test applications. Special features are the high signal purity and constant amplitude flatness throughout the entire frequency range.
- The Amplitude display and 40MHz Frequency Counter makes the instrument ideal for a broad range of test bench use including precise audio measurement.
- It generates the wave forms: DC, sine, square, triangle, pulse and ramp with invert pulse and invert ramp. The output frequency can be swept internally and externally over a 100:1 ratio.
- SM5075 has modulations of any signal by AM, FM, PWM, PAM and internal Sweep. It provides direct display of Amplitude.
- SM5075 provides internal AM Signal generator 2-20kHz.
- This is especially convenient for examining transmission curves of a circuit under test using an oscilloscope as an indicator. The square wave output has a fast rise and fall time of <70ns.
- All outputs are non-destructively protected against short-circuits . This is a very useful feature for educational applications.
- Auto ranging 40MHz Frequency Counter with frequencies are read out on a 5 digit LED display, making accurate frequency setting easy with a maximum resolution of 1mHz in 3Hz range.
- A TTL-compatible trigger signal is provided to facilitate stable oscilloscope display of all generated waveforms
Features :
- Frequency Range 0.3Hz to 3MHz
- 40MHz Frequency Counter
- Digital Frequency Readout (5 digit)
- Waveforms: Sine, Square, Triangle, Ramp, Pulse, DC, DC-Offset Adjustment
- TTL Trigger Output
- Internal Sweep & External AM FM-Modulation
- Square Wave Risetime < 70ns
- Distortion Factor < 0.5% (upto 100kHz)
- Digital Display for Function Generator, Frequency Counter and Amplitude
- Internal AM Generator (20Hz to 20kHz)
