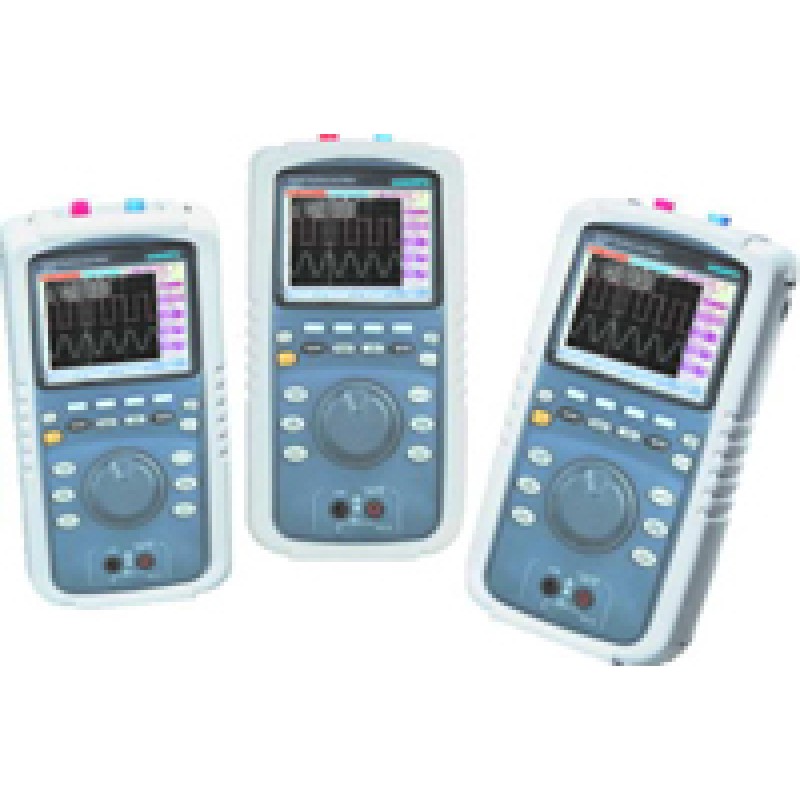

DIGITAL OSCILLOSCOPE METER

Models : SMH-20 , SMH-40 & SMH-60

Features :

• Digital Oscilloscope Meter
• Oscilloscope mode
• Real time sampling : Capture signals at 200 MS/s in real time or 2.5 GS/s for repetitive signal.
• Memory length : Long memory depth of 125 k Bytes gives storage of minute details.
• Auto set : Feature allows you quickly search and display for signals, adjust vertical attenuators, time base speed, triggering for optimum display.
• Automatic and Cursor measurements : As many as 22 measurements can be done automatically just by selecting the parameter. Simultaneously four measurements can be displayed.
• Unlimited storage on USB stick : When you pick up some signal, it can be stored for ever, use of USB stick (memory ) gives unlimited media for storage and transfer to permanent media like PC, CDs etc.
• FFT : In modern days applications instruments use complex signals, and needs FFT analysis.
• SMH40 and SMH60 offer this feature for on the spot solution for analyzing test signals.
• Digital Multimeter mode
• True RMS measurements : These instruments offer true rms readings for correct analysis of the measurements of ac parameters.
• Auto range : Fully auto ranging while measuring all the parameters to appropriate selection of ranges.
• Extended parameters : Apart from DMM standard functions, other auxiliary parameters can also be measured using optional external sensor like temperature, current, humidity and pressure.
• Data Logger mode
• The SMH series allows you to record data for DMM parameters.
