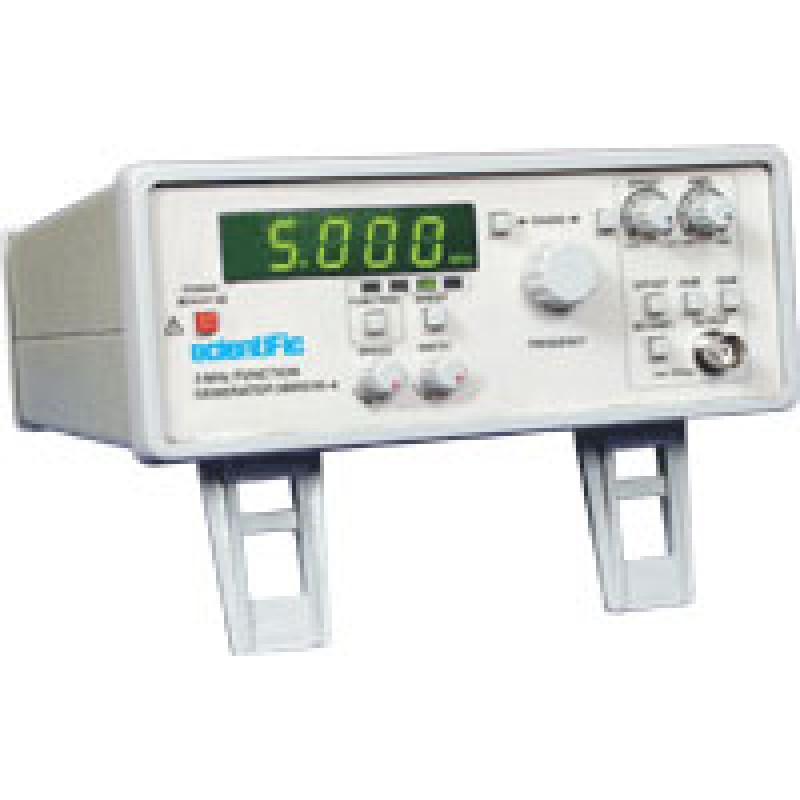

GENERAL PURPOSE 3 MHZ FUNCTION GENERATOR
Model : SM-5070
- The various signals available from the SM5070 Function Generator make it a versatile signal source useful for most measurement and test applications.
- Special features are the high signal purity and constant amplitude flatness throughout the entire frequency range. This makes the instrument ideal for a broad range of test bench use including precise audio measurement.
- It generates 3 basic wave forms: sine, square and triangle. The output frequency can be swept internally and externally over a 100:1 ratio. This is especially convenient for examining transmission curves of a circuit under test using an oscilloscope as an indicator. The square wave output has a fast rise and fall time of < 20ns.
- All outputs are non-destructively protected against short-circuits and accidental applied voltage of upto ± 45V. This is a very useful feature for educational applications.
- Frequencies are read out on a 4 digit LED display, making accurate frequency setting easy with a maximum resolution of 1mHz in 3Hz range. The measuring time is a constant 0.25s over the entire frequency range.
- A TTL-compatible trigger signal is provided to facilitate stable oscilloscope display of all generated waveforms
Features :
- Frequency Range 0.3Hz to 3MHz
- Digital Frequency
- Readout (4 digit)
- Waveforms: Sine, Square, Triangle, DC
- DC-Offset Adjustment
- Trigger Output
- Internal Sweep & External FM-Modulation
- Square Wave Risetime Typ. 20ns
- Distortion Factor < 0.5% (upto 100kHz)
