PEX Photoelectric Switch

Product Details :

Current Consumption	20 mA or Less
Power Source	12,24 VDC
Light Source	Red LED
Detection Distance	10 m
Detachable Object	Opaque Object of 50 mm
Output	NPN,PNP
Sensitivity Adjustment	Provided
Protective Structure	IP67
Weight	50 GM

PEX Series
Complete functions, water-proof!
·         Protective structure is IP67.
·         Connector type is lined-up. (Easy maintenance)
·         Stable lamp provides.
·         Both PNP and NPN output are lined-up.

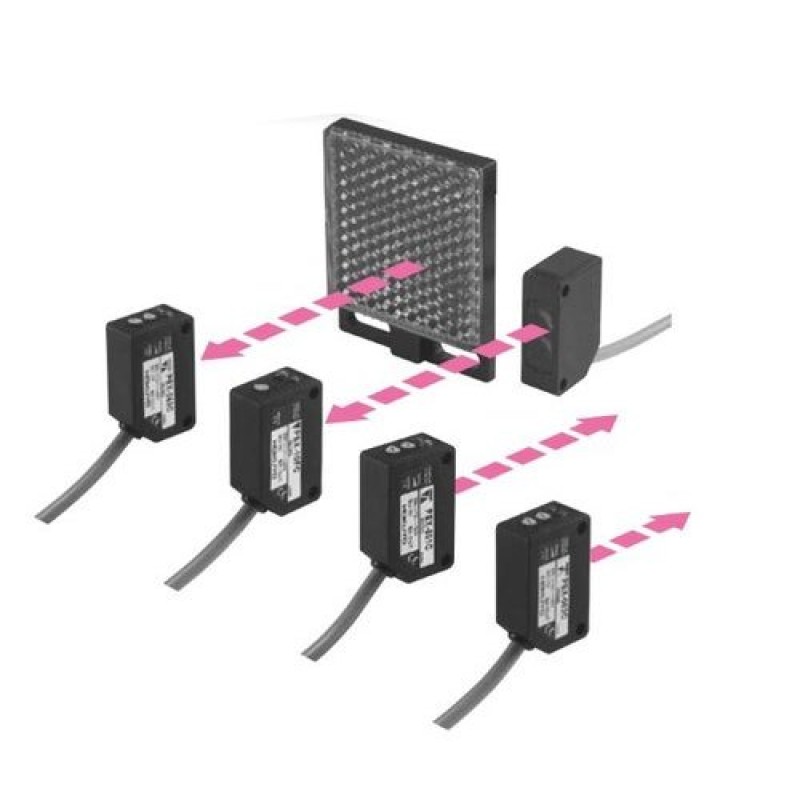

·         Detecting distance is 10m for through-beam type, and 2.6m for retro-reflection type and 0.5m for diffuse reflection type.
