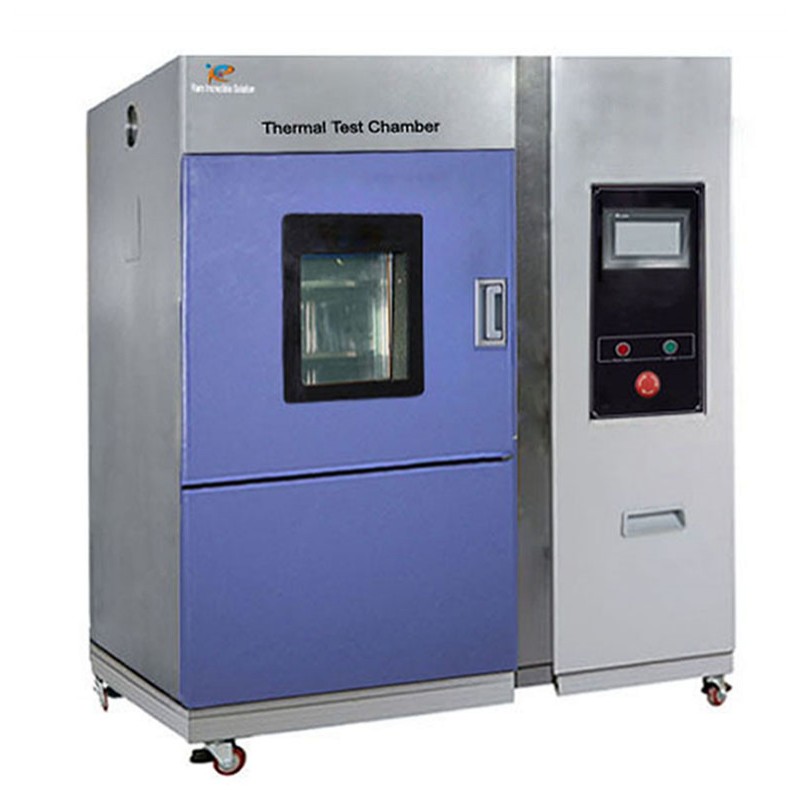

Programmable Fast Thermal Test Chamber

Product Details;

Specification/Additional Details

Specification
Brand	Ram Incredible Solution
Country of Origin	Made in India
Power	Voltage: 220V AC(single phase)/380VAC±10%  ( 3 phases, 50/60 Hz) Maximum: 40-50A AC
Test Chamber	SS304 stainless steel chamber with of minerals wools as the thermal insulator Chamber dimensions: As per requirement Window: double layers Capacity: As per requirment Vent Port: Vent port available built in the back for releasing pressure or smoking in the case battery
Control Panel	7’’ touch-screen control panel to interface the machine Completely  programmable, and each program can be used as cyclic in nature
Cooling & Heating System	Dual refrigeration  compressor Refrigerant: R404A, environmental friendly Stainless heater tube Built-in beep alarm for over-heated and over-current protection Temperature Range: programmable from -70ºC  to + 150ºC. Temperature accuracy:    ±0.5ºC Temperature uniformity:  ± 1.5ºC Max. Heating rate:           Average: 5ºC/min Max. Cooling rate: 5ºC/min (+75ºC to -40ºC); 1ºC/min (-40ºC to -70ºC)
Chamber size Available	Other chamber size options: 80L   (Chamber size: 400W x 500H x 400D mm, Machine Dimensions: 980x1590x910 mm) 225L (Chamber size: 500W x 750H x 600D mm, Machine Dimensions: 1170x1840x1030 mm) 408L (Chamber size: 600W x 850H x 800D mm, Machine Dimensions: 1170x1950x1320 mm) 800L (Chamber size: 1000W x 1000H x 800D mm, Machine Dimensions: 1570x2070x1320 mm)
Testing Criteria	UN38.3 Li-Ion Battery Transportation Safety Testing
Temp. Range	Ambient – 200℃±2ºC
Control Accuracy	±0.5℃
Temp. Uniformity	±3.0℃( No load)
Temp. Rising	RT – 150℃ (≧5℃/min, liner with load 40kg module)
Temp. overshoot	≦2.0℃
Testing Room Dimension	W1000 X D800 X H1200 mm
External Chamber Dimension	W1400 X D1200 X H1840 mm
External chamber Material	CRC sheet , Powder Painted
Observation Window	300 X 300mm (18mm Tempered Explosion Proof Glass)
Heating Power	About 11.5 KW
