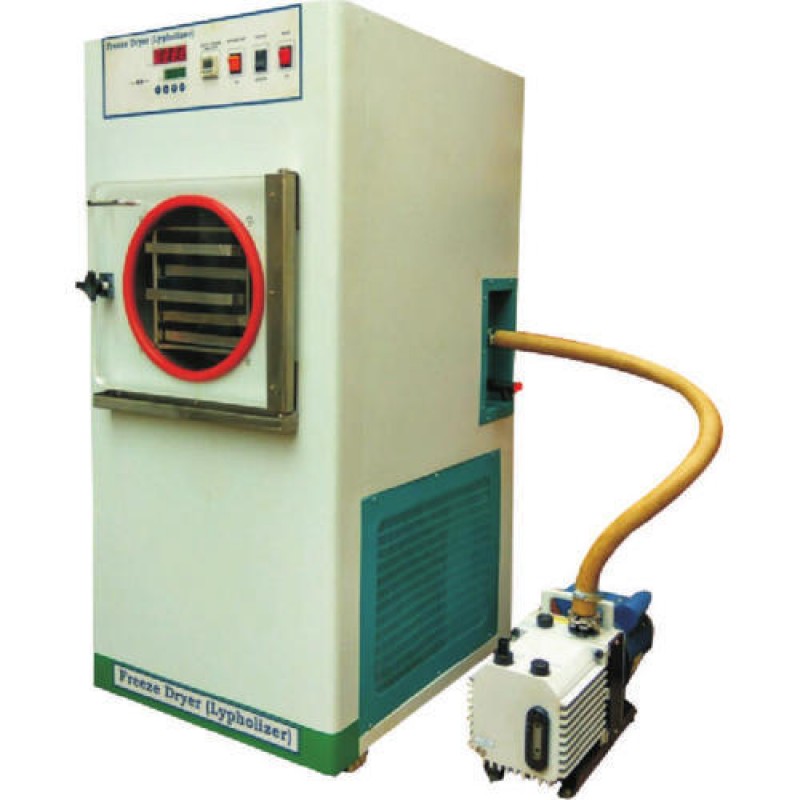

FREEZE DRYER
Product Details:
APS Freeze Dryer or Lyophilizer is a such a dehydration process in which is water is removed for the frozen sample using purified vacuum condition. This process is followed by first stage Sublimation (primary drying) and last stage Desorption (secondary drying). In lyophilization process, where water in ice form on the frozen goods can be directly lyophilized into steam without melting in advance, thus the goods are dried. The substances frozen can be wellpreserved for a long time and returned to their former state once being watered without losing their biochemical properties. The freeze drying technology is especially ideal for those bio-products sensitive to antibiotic, vaccines, blood products, enzymes and hormones.

3 to 15 Liters ice capacities	-40°C or -80°C temperature
CFC refrigeration system	Precise vacuum control
Corrosion resistant construction	Audio visual alarm optional
Digital PID controller	Simple to install and operate
Wide range of accessories are available	Single or two stages cooling system
Front Loading (Tray Type)	Top Loading (Vacuum prove)

Specifications:

Model	APS-LY-103	APS-LY-105	APS-LY-108	APS-LY-110	APS-LY-115
Max. ice capacity	3L	5L	8L	10L	15L
Ice condenser performance	2L / 24Hr	3.5L / 24Hr	5.5L / 24Hr	7.5L / 24Hr	10L / 24Hr
Tray	2	2	3	4	5
Cold trap temperature	-40°C or below (-80°C Optional)
Temperature Sensor	PT-100
Controls	Refrigeration ON/OFF Vacuum ON/OFF
Controller	PID controller/PLC+HMI Optional
Refrigeration System	HCFC / CFC Free, -40°C (-86°C optional)
Compresso	(hermetically sealed)
Defrost	Defrost Hot Gas
Pressure Contro	Automatic or Manual
Drain connection	Side mounted
MOC	Exterior - Powder coated, MS Exterior top - SS 304, Drying chamber - SS 304 OR SS 316, Cold Trap Chamber - SS 304 OR SS 316, Lids - Acrylic
