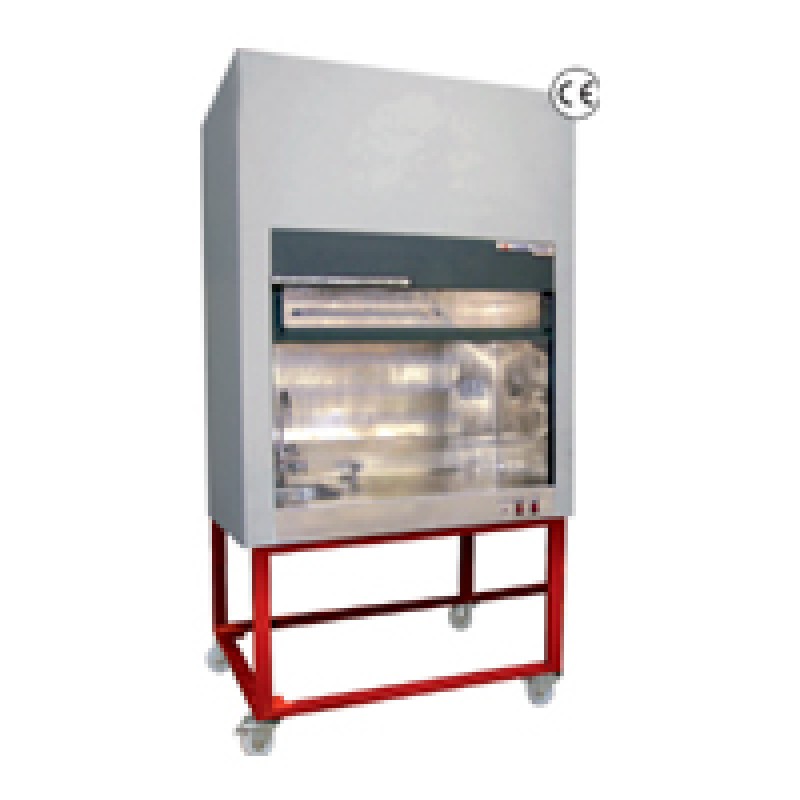

FUME HOOD REW-167
Product Details :
- Highly
recommended for exhaust of toxic gases, acidic/alkaline fumes, chemical
vapors, removable of odour etc from the hood working area.
- Very useful for products and personal protection,
reducing odour levels in laboratories and protect costly lab equipments.
- Complete exhaust motor blower assembly generated a
negative pressure inside the hood thus facilitating removal of all
contaminants from the works area, into the atmosphere.
- Main cabinet/body is fabricated out of wooden
board, laminated with high quality laminates from outside.
- Work table is made of Stainless Steel (SS-304) and
is fitted with a small S.S. sink with water tap connections.
- The front door moves vertically up and down with
concealed counter balanced weight.
- The unit is fitted with fluorescent light and a gas
cock for gas/air supply.
- The front facing panel is fitted with 15/5 Amp
socket with switched for exhaust system and fluorescent light.
- To work on 220 / 230 volts A.C. Supply.
- Highly recommended for exhaust of toxic gases, acidic/alkaline fumes, chemical vapors, removable of odour etc from the hood working area.
- Very useful for products and personal protection, reducing odour levels in laboratories and protect costly lab equipments.
- Complete exhaust motor blower assembly generated a negative pressure inside the hood thus facilitating removal of all contaminants from the works area, into the atmosphere.
- Main cabinet/body is fabricated out of wooden board, laminated with high quality laminates from outside.
- Work table is made of Stainless Steel (SS-304) and is fitted with a small S.S. sink with water tap connections.
- The front door moves vertically up and down with concealed counter balanced weight.
- The unit is fitted with fluorescent light and a gas cock for gas/air supply.
- The front facing panel is fitted with 15/5 Amp socket with switched for exhaust system and fluorescent light.
- To work on 220 / 230 volts A.C. Supply.
TECHNICAL SPECIFICATIONS
& ORDERING INFORMATIONS
Model
#REW-3(SM)
#REW-4(SM)
#REW-5(SM)
#REW-6(SM)
Internal Dimensions (WXDXH) (mm)
900x600x600mm
1200x600x600mm
1500x600x600mm
1800x600x600mm
MOC
Wooden
MOC (Inner walls) (OPTION)
Laminated with high quality wooden
laminate or lined with Stainless Steel (OPTION)
Model | #REW-3(SM) | #REW-4(SM) | #REW-5(SM) | #REW-6(SM) |
Internal Dimensions (WXDXH) (mm) | 900x600x600mm | 1200x600x600mm | 1500x600x600mm | 1800x600x600mm |
MOC | Wooden | |||
MOC (Inner walls) (OPTION) | Laminated with high quality wooden laminate or lined with Stainless Steel (OPTION) |
Extra Large Model | #REW-3(SL) | #REW-4(SL) | #REW-5(SL) | #REW-6(SL) |
Internal Dimensions (WXDXH) (mm) | 900x750x900mm | 1200x750x900mm | 1500x750x900mm | 1800x750x900mm |
MOC | Wooden | |||
MOC (Work Area Table) | Stainless Steel (SS-304) | |||
MOC (Inner walls) (OPTION) | Laminated with high quality wooden laminate or lined with Stainless Steel (OPTION) |
OPTIONS
a) | Mounting base below work table with storage space |
b) | SS- Lining on Work Walls |
c) | FRP Lining on Work Walls |
d) | Fume Duct -PVC per running feet |
e) | Acid Resistant Tiles on Work Top |
f) | Apparatus Holding Grid to hold samples/glasswares etc. |
