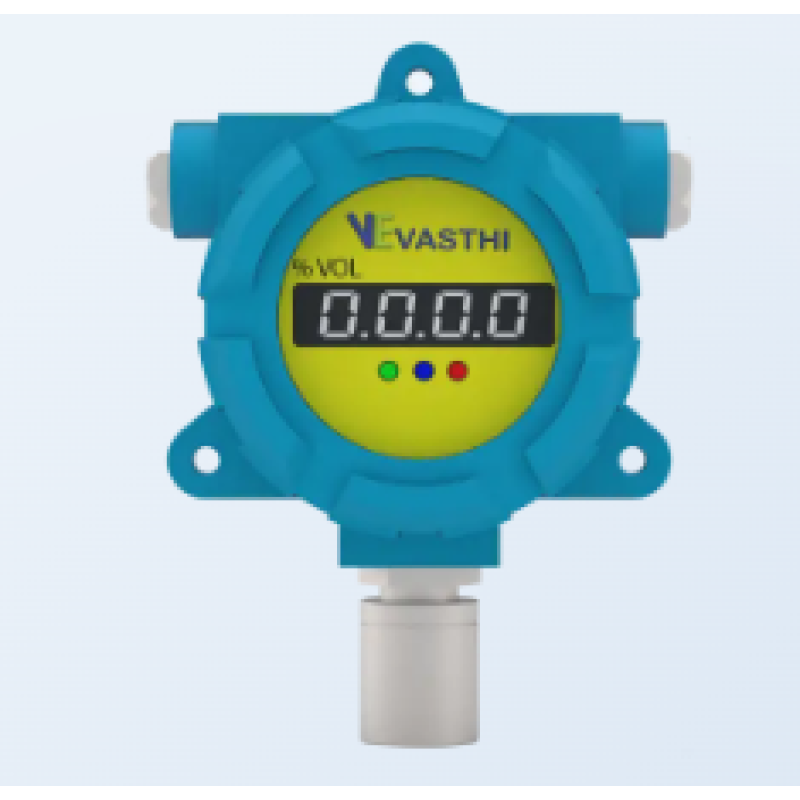

Fixed gas detector

Vasthi's VT-60 fixed gas detection device provides 24/7 protection for your entire industrial area. It can also be connected to a detection system that displays the gas concentration numerically and triggers an alarm if the value is abnormal.

 Gas detectors are one of the most important devices to keep industrial sites safe. Gas leaks in a busy industrial environment can easily turn into a disaster. Many types of gas sensors are available at Vasthi Instruments to monitor and alert personnel in the event of a gas leak. A fixed gas detector is highly recommended to monitor the air quality of the industrial environment.

Why do you need gas detection instruments?

Various types of toxic and flammable gases are constantly used in the industrial part of the process. It is a common sight to see the "EX" mark in many places in any industrial environment. The EX symbol means "explosive areas," and additional safety measures must be followed to protect these areas from fire. In addition, the use of various toxic and flammable gases such as carbon monoxide (CO), hydrogen sulfide (H2S), phosphine (PH3), nitrogen oxides (NOx), and ethylene oxide (ETO) is common in many industries.

Despite being extremely careful while handling these gases, the possibility of leaks is unavoidable. Gas detectors with fixed sensors are very efficient at monitoring industrial areas for potential gas leaks. LEL gas detectors are great tools for identifying harmful gas leaks and alerting personnel with alarms before it's too late.

Vasthi VT-60 fixed gas detectors, are installed in high-priority areas to monitor gas levels 24/7. VT-60 fixed gas detectors operate on electrochemical and catalytic principles for the accurate detection of toxic and flammable gases in industrial areas.

The VT-60 fixed gas detector is optimized to flawlessly detect every flammable and toxic gas leak that can potentially jeopardize industrial zone safety.

Detection principle: The system provides 24V standard DC voltage to the external detector, collecting a standard (4–20) mA input signal to analyze and complete the display alarm operation.

Suitable for: This fixed gas detector can be connected to the control panel, alarm information would be displayed in the control panel by uploading 485 or currency signal. Gas technical parameter settings are shown in the table. (For reference only, users can set parameters according to specific conditions.)





Gas	Range	Resolution	Alarm point
CH4	0 -100% LEL	1% LEL	25% LEL
C3H8	0 -100% LEL	1% LEL	25% LEL
C2H2	0 -100% LEL	1% LEL	25% LEL
CO	0 - 1000ppm	1ppm	50ppm
H2S	0 - 100ppm	1ppm	10ppm
H2	0 - 1000ppm	1ppm	35ppm
SO2	0 - 20ppm	1ppm	5ppm
NH3	0 - 100ppm	1ppm	35ppm
NO	0 - 250ppm	1ppm	35ppm
NO2	0 - 20ppm	1ppm	10ppm
CL2	0 -20ppm	1ppm	2ppm
O3	0 - 20ppm	1ppm	2ppm
ETO	0 - 20ppm	1ppm	10ppm
CO2	0 - 5000ppm	1ppm	1000ppm
HCN	0 - 50ppm	1ppm	10ppm
O2	0-30%vol	0.1%vol	Low 18%vol          High 23%vol

FEATURES :

• Computer interface:  RS-232
• Data Logger:  1 Megabyte Non-Volatile Memory Control unit Specifications
