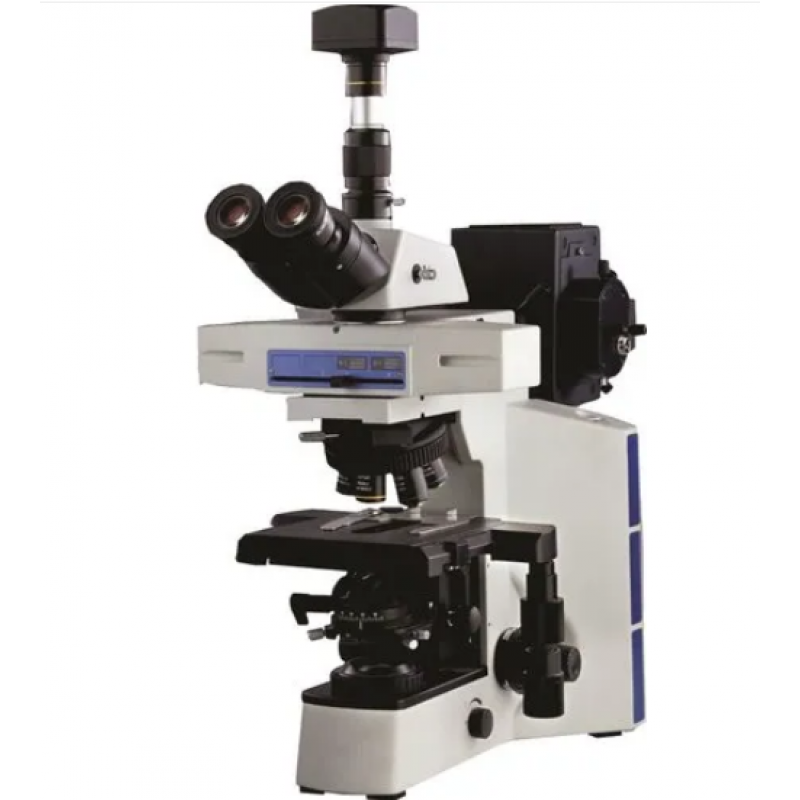

Fluorescent Research Microscope High End With Camera

Light Source	HD
Model Name/Number	MODEL FL-500
Brand	BLISCO
Magnification	1500
Country of Origin	Made in India

Fluorescent Research Microscope High End With Camera





Focus:   Upright microscope with course and fine focus knobs. Built-in Eco switch & possible to upgrade.

Eyepieces:          10X magnification, with diopter adjustment facility with field of view of 22mm or higher.

Nosepiece:         Septuple nosepiece with slots for DIC/Polarizing Attachments

Objectives:         The following objectives suitable for bright field, phase contrast & fluorescence microscopy should be quoted:

1. Plan Achromat 10X

2. Plan Achromat 20X

3. Universal Plan fluorite 40X

4. Universal Plan fluorite 60X

5. Universal Plan fluorite 100 X Oil

Applications:      The system is equipped with bright field & fluorescence imaging application techniques

Observation Tube:          Trinocular with observation optical path: 0(Binocular)/100 (Video Port), 100(Binocular)/ 0(Video Port) & 20(Binocular)/ 80(Video Port) Field Number 22mm

Optical System: Universal Infinity corrected optical system

Stage:   Mechanical stage with ceramic coating, with double slide holding capacity

Condenser:        Condenser for Bright field applications NA 1.1

 Epi-Fluorescence Attachment: Epi-fluorescence with Mercury/Metal Halide illuminator of 130W with life-time of 2000 hrs or more. Fluorescence turret with option for at least 5 filter Cubes. It give uniform fluorescence illumination

Fluorescence Filters:      All the filters have interference type with hard coating for better transmittance/ reflectance.

1. Narrow Band Pass filter for DAPI/Hoechst

2. Narrow Band Pass filter for FITC/GFP

3. Narrow Band Pass filter for TRITC/Rhoda mine/Alexa 546



Electronics:         Universal input 110V-240V AC, 50/60 Hz

 Illumination:      Built-in Koehler illumination for transmitted light. Built-in 3 filters (Blue filter, 2 Neutral Density filters). At least 12 V 100W Halogen bulbs (pre-centered).
