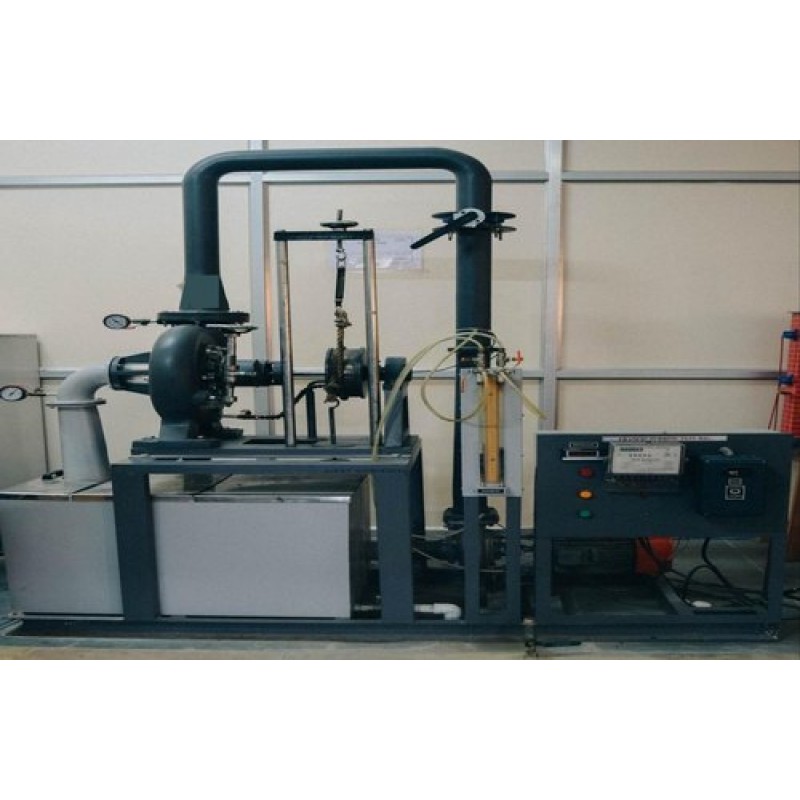

Francis Turbine Test Rig

Product Details:

Country of Origin	Made in India
brand name	saini
model number	SSIFMHL-016A
- Output power	1 KW.
- Discharge	1000 LPM (approx.)
- Supply head	15 meter
- Speed	1500 RPM (approx.)
- Runner	Curved vanes type.
- Dynamometer	Rope brake drum type , drum diameter 200 mm.
- Sump tank	Capacity 350 liters approx. (stainless steel material )
- Water circulation	Centrifugal pump , 5HP , three phase, standard / kirloskar /Crompton makes
- Dial balance (1 nos )	25 kg
- Pressure gauge	Bourdon type , range 0-7 kg/cm2
- Vacuum gauge	Bourdon type , range 0-760 mm of Hg
- Discharges measurement	Venturi meter with differential pressure manometer.
- Tank material	stainless steel material
- Pipe fitting	GI pipe.

SAINI SCIENCE INDUSTRIES manufacture of Gear pump test rig (Variable Speeds with Swinging Field Dynamometer).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Gear pump test rig (Variable Speeds with Swinging Field Dynamometer). The present Gear Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Gear Pump having a pair of meshed gears, coupled with a swinging frame type DC Motor which permits direct torque measurement with the help of a spring balance. Power input to the DC Motor is varied by means of a Thyristor controlled DC Drive to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Pump. Flow of fluid is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.
