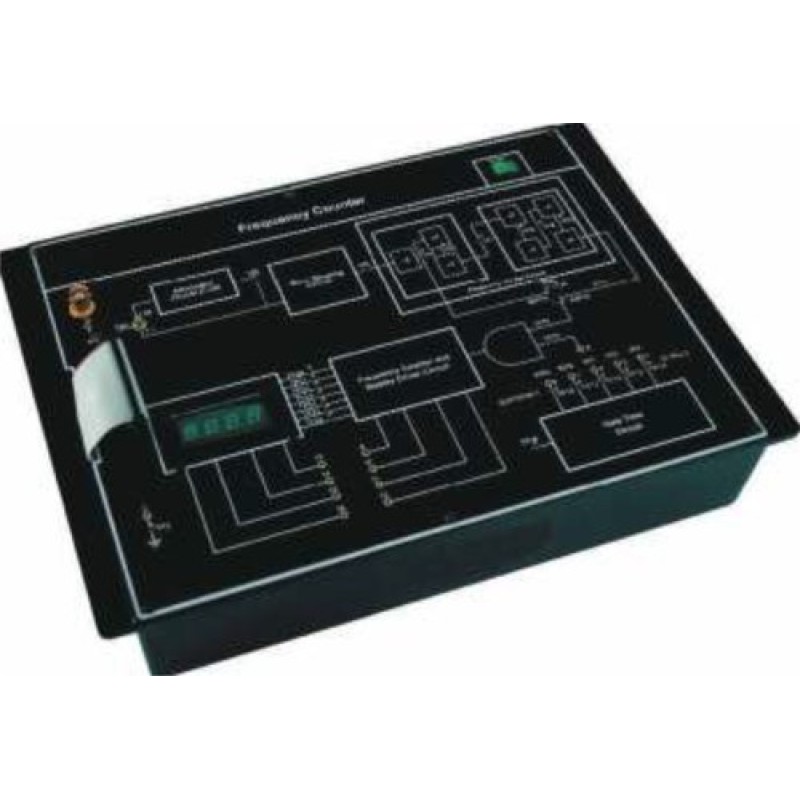

Frequency Counter Trainer Kit

Product Details:

Phase	Single
Automation Grade	Manual
Power Supply	230V AC
Display	4 digits, 7 Segment LED Display
Accuracy	+/- (0.5% 1D) of rdg
Frequency Range	20 Hz - 30 MHz
Sensitivity	0.5 V
Attenuation	1 1, 1 20
Input Impedance	1 MW

Frequency Counter Trainer, is an exclusive and attractively designed product to demonstrate the fundamental principle andfunctioning of Frequency Counter. It includes various circuits namely, attenuator circuit, wave shaping circuit, frequencydivider circuit, display driver circuit, and gate time circuit. All these circuits are incorporated on a single board for study and verification. Simple representation of all the circuits can explain corresponding functionality in a very easy way to perceive the logics.

Features:

• Exclusive and Compact design
• Stand alone operation
• Diagrammatic representation of Frequency Counter circuit
• Low cost.
• Inbuilt 5V, -12V SMPS
• Low cost.
• Inbuilt 5V, -12V SMPS
