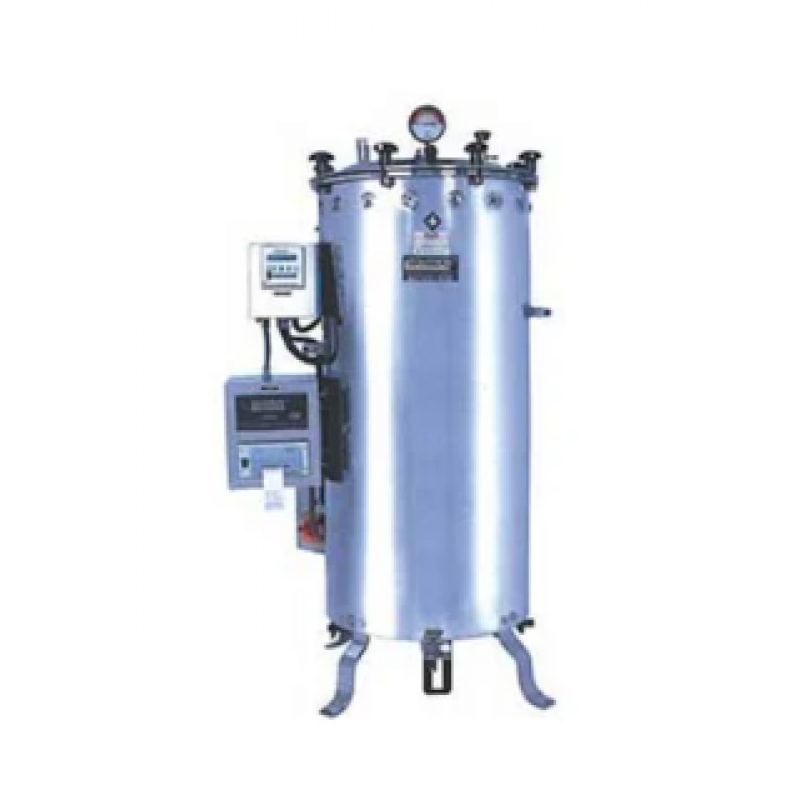

Fully Automatic Autoclave
Product Details:
� EQUITRON Fully Automatic Vertical Autoclaves are ideal for all critical applications requiring assured and reliable total destruction of all living microorganisms.
� Ideal for Pharma QC / QA / Micro / R & D, Chemical Plants, Bio-Labs, Waste treatment, Water & Air Pollution Labs, Fisheries, Mineral Water, Food, Beverage & Distillery Plants, Flight Kitchens, Hotels, Hospitals, Nursing Homes, Polyclinics, specialty Doctors and all applications requiring assured sterilization.
EQUITRON Advantages:
� Enables reproducibility of results as full cycle including purging of stale air, sterilizing hold time, cycle end with exhaust of pressure is automatic, requiring no human intervention.
� Widest options for documenting available:
� To external printer from Controller, of temperature with F0 & pressure.
� To independent scanning / displaying & printing to external or inbuilt printer.
� Data Logger for PC management of temperature cycles with plots, data & F0.
� Independent circular Chart Recorder.
� Supplied with Test Certificates along with traceablities for Temperature Controller and Pressure Gauge.
Construction:
� Inside and outside chamber, carrier(s) are fully stainless steel.
� Hydraulically die pressed lid.
� Lid, flange, fly screw, cross pin, heater cover stand, are also fully stainless steel.
� All internal joints are argon welded, ground and polished to give crevice free internals.
Standard Features:
Electronics and Electrical
� �Processor based Controller with time and temperature programmable by user.
� A backlit alphanumeric two line 32 characters LCD display, displays all information including process and set values at a glance, eliminating guesswork.
� Operating and Display range up to 122�C (135�C for models #7423 & #7433) in 0.1�C steps.
 Flexible Pt100 sensor, enabling precise in load monitoring.
 Low water level alarm and cut off.
 Sensor open alarm.
 End of cycle buzzer and auto reset.
 Miniature Circuit Breaker for On/Off plus safety.
 Solenoid Valve for automatic purging and exhaust.
 Industrial grade energy efficient ring type heater, custom made for EQUITRON Autoclaves, thus reducing power bills by 16 to 40%.
Mechanical
 Lid is fitted with Pressure Gauge, Safety Valve, Extra Safety Valve, Manual Exhaust Valve, Vacuum Breaker cum Purge Valve and Quick Release Coupling for online pressure calibration checks.
 Handy-raise device for lid - safe and user friendly - on #7441 and #7451.
 Drain valve facilities easy cleaning.
 Moulded rubber Gasket.
 Stainless Steel carrier(s) along with heater cover stand.D
OCUMENTING OPTIONS
#OP: Online printing of temperature with F0 to external DMP (optional)
 Direct online printing of Controller displayed data.
 Header with preset Company Name.
 Automatic four digit sequential batch numbering, with manual over-ride facility.
 Print interval user settable from 12 to 9999 seconds.
 Prints with date, time, set point, process temperature, F0.
 Prints to any compatible 80 / 132 column dot matrix printer.
OPP: Online printing of temperature with F0 + pressure to external DMP (optional)
 Direct online printing of Controller displayed data.
 Header with preset Company Name.
 Automatic four digit sequential batch numbering, with manual over-ride facility.
 Print interval user settable from 12 to 9999 seconds.
 Prints with date, time, set point, process temperature, F0 and pressure.
 Prints to any compatible 80/132 column dot matrix printer.
