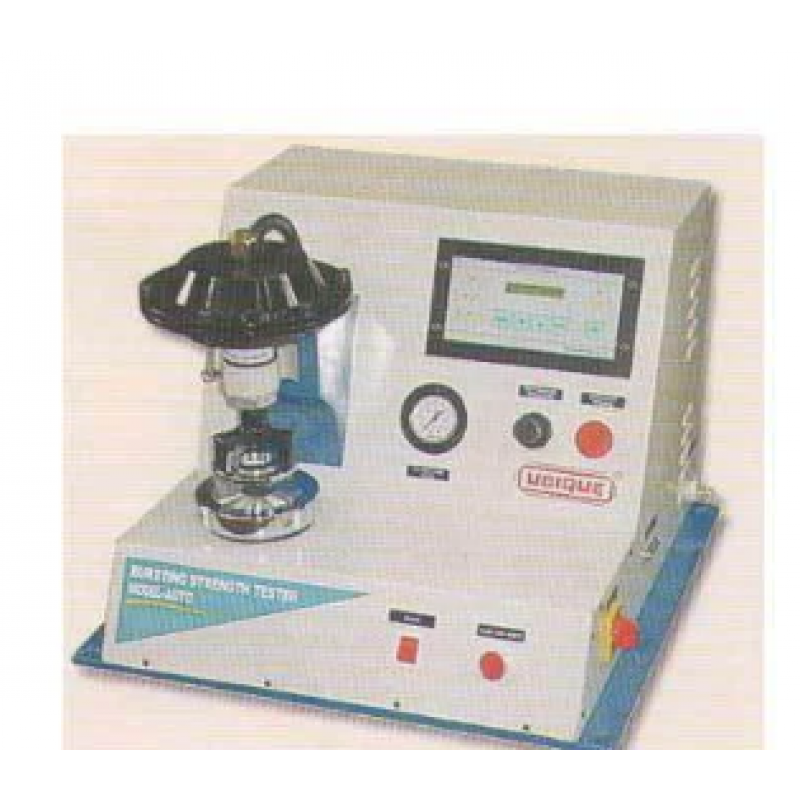

Fully Automatic Digital Model
Product Details:
Single push-button operation.
Pneumatic Clamping Pressure for ensuring uniform application of pre-determined clamping pressure, to eliminate variations in the readings due to variations in clamping pressure - when done manually.
High Precision Digital Read-out.
Readings are displayed digitally with least count of 0 1 Wg/cm2.
Available in two ranges:
Board Tester with moulded rubber diaphragm. Range 03-40 kg/cm2 (UBS 35A) or 03-70 kg/cms (UBS 70A)Readingsin lower rangeare only indicative.
Paper Tester with thinner rubber diaphragm Range 01-14 kg/cm2 (UBS 14 A).
