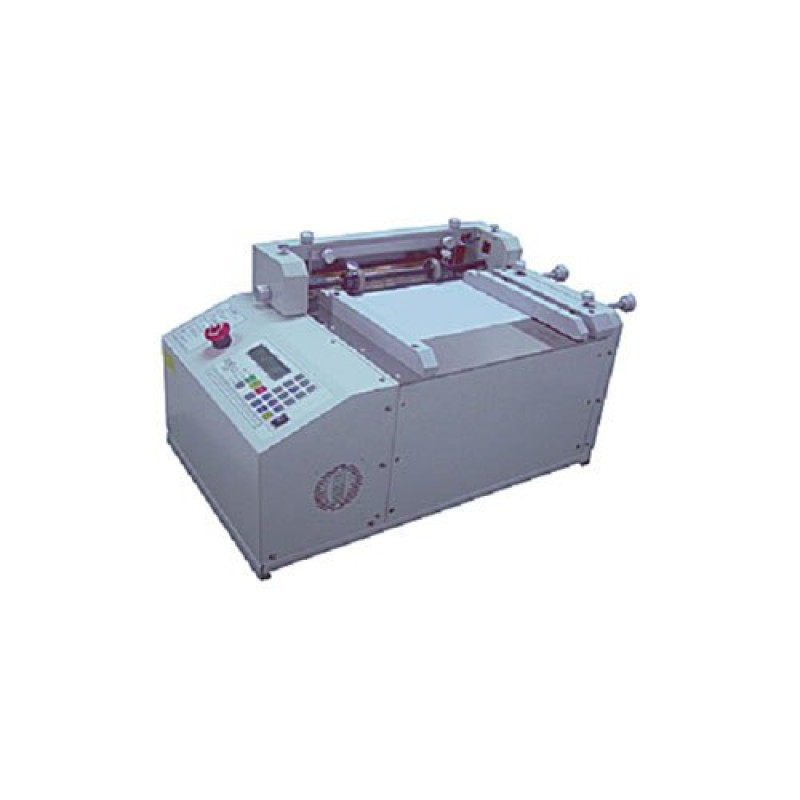

GSI-600 Programmable Sheet Cutter
Product Details :
Model
Name/Number | GCI-600 |
Brand | Zeta
Corporation |
Capacity | Max.
240 strips/min |
Weight | 20
kg |
Applicable
Card Width | 100
mm |
Applicable
Card Thickness | 2.5
mm |
Cutting
Range (Width) | 2.0~99,000
mm |
Cutting
Accuracy | +-0.1
mm |
Dimension | 400(L)
x 300(W) x 260(H) mm |
Current | 0.3KVA,3A |
Description:
- The GSI 600 is a guillotine cutter designed for cutting various types of test materials (sample pad, absorbent pad, conjugate pad, and etc. ) that are in sheet forms to convert them into pre-cut pad strips (narrower width) at desired width, for the purpose of using them for the next process of lamination to card.
- The unit works by manually loading a sheet onto the feeding guide where the guillotine blades cut the sheet into a narrowed width one at a time. As the cutting width can be easily changed for those with several cutting (pad strip size) requirements and with its low-cost, it is an ideal unit for any production scale facilities.
Features :
User-Friendly:
- Quick & Easy programmable key pad allows for:- easy adjustment of cut width and speed- smart memory function saves up to 10 job settings
- Simple operation for minimal maintenance
Performance
- Accurate precision cuts (cutting accuracy: 0. 1mm)
- Specially coated blades for improved lifespan.
- Anti-static ionizer to reduce the issue of strip clinging on blades and etc.
Flexible
- handles wide range of sheet size (up to 310mm width)
- adjustable cut strip width to virtually any size; requires no extra blade set
Additional Information:
- Item Code: GSI-600
- Production Capacity: 100
- Delivery Time: 30 DAY
