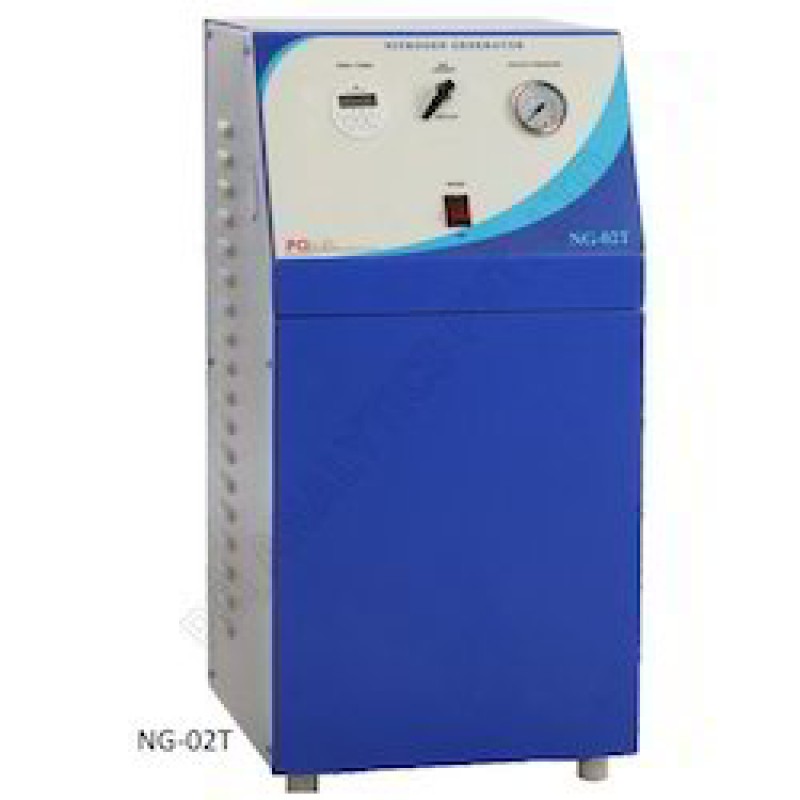

Turbo Evaporator Nitrogen Generator
Product Details :
| Design Type | Standard |
| Automatic Grade | Semi- Automatic |
| Material | Steel |
| PRINCIPLE SPECIFICATIONS | For Turbo Evaporator (NG-02T) |
| Moisture | 100-200 ppm |
| Total Hydro Carbon | < 10 ppm |
| CO & CO2 | < 10 ppm |
| Purity | > 98% |
| Micro Particulates | < 0.01µ |
| Capacity of N2 Generator | 50 to 700 LPM at 600 psig (as per selection of model) |
| Method of purification | Pressure Swing Adsorption (PSA) |
| Room temperature | 5 °C - 25 °C |
| Start up time | 1 hrs |
| Electrical requirements without Compressor | 230 V AC, 50 Hz, 1 Ph, 2 Amp |
| The dimension of N2 Generators in mtr. (without compressor) (approx.) | 2H x 1W x 1D (approx) (as per selection of model) |
| Net Weight (without compressor) (approx.) | 100 kg - 300 kg (as per selection of model) |
