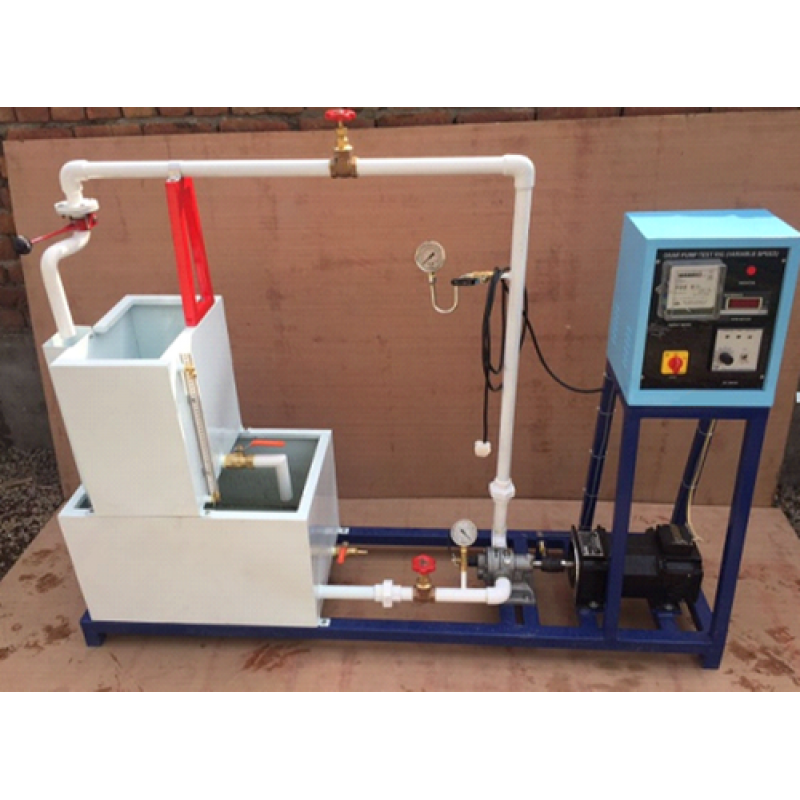

Gear Pump Test Rig
Product Details:
Country of Origin | Made in India |
brand name | saini |
model number | SSIFMHL-012D |
- Pump | Capacity 1HP, speed 1500 RPM (MAX.) Head 5 kg/cm2( max.) |
- Drive | 1 HP DC motor, swinging field type With speed control |
- Spring balance | Dial type |
- Sump tank | 600 x 500 x 400 mm size , Capacity 120 liters approx. (stainless steel material ) |
- Measuring tank | 200 x 500 x 400 mm size, Capacity 40 liters approx, Fitted with Piezo-meter Tube scale.(stainless |
- Medium flow | Oil. |
- Gauge | One piece vacuum gauge And one piece pressure gauge |
- Stop watch | Electronic type |
- Pressure gauge | Bourdon type , range 0-2 kg/cm2 |
- Vacuum gauge | Bourdon type , range 0-760 mm of Hg |
- Tank material | (stainless steel material ) |
- Pipe fitting | GI pipe. |
SAINI SCIENCE INDUSTRIES manufacture of Gear pump test rig (Variable Speeds with Swinging Field Dynamometer).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Gear pump test rig (Variable Speeds with Swinging Field Dynamometer). The present Gear Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Gear Pump having a pair of meshed gears, coupled with a swinging frame type DC Motor which permits direct torque measurement with the help of a spring balance. Power input to the DC Motor is varied by means of a Thyristor controlled DC Drive to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Pump. Flow of fluid is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Gear pump test rig (Variable Speeds with Swinging Field Dynamometer). The present Gear Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Gear Pump having a pair of meshed gears, coupled with a swinging frame type DC Motor which permits direct torque measurement with the help of a spring balance. Power input to the DC Motor is varied by means of a Thyristor controlled DC Drive to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Pump. Flow of fluid is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.
