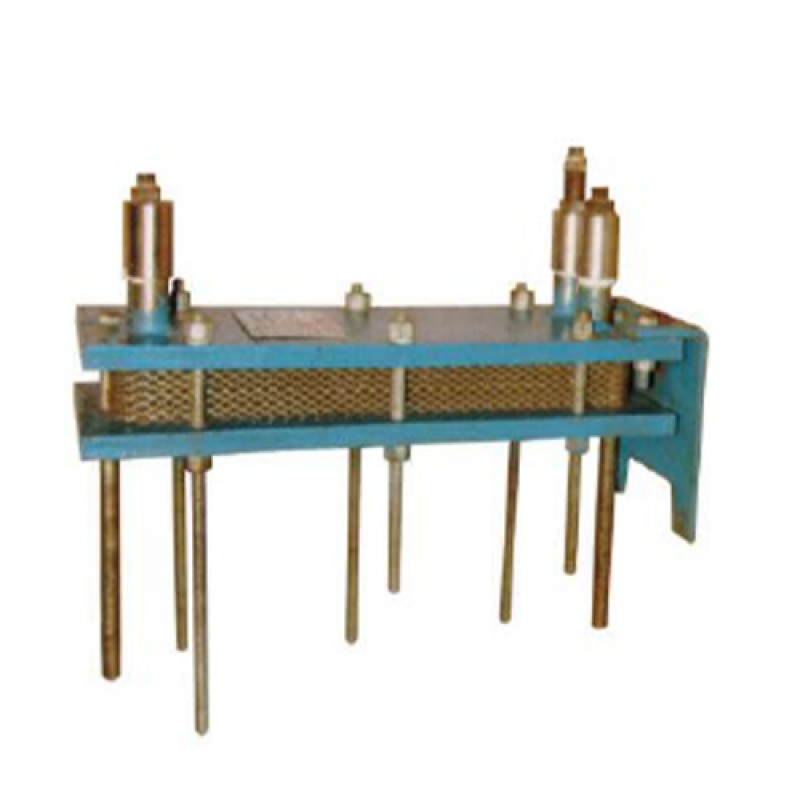

HEAT EXCHANGER TRAINER (HT-01)

S P Tech Equipments has designed the Heat Exchanger Trainer to facilitate students to study and comparison of different types of Heat Exchangers on the same setup. The Basic setup consists of a tank fitted with electric immersion heaters for supplying hot water to the heat exchangers. The supply temperature of this hot water is selected and controlled by a manually operated thermostat or a temperature controller (optional). Motor driven pumps is provided to circulate hot and cold water through flowmeters through the quick release couplings, which are to be connected to the heat exchangers under study. The trainer is provided with Shell and Tube heat exchanger and a concentric pipe heat exchanger in which both parallel and counterflow arrangements are possible. Optionally other type of heat exchangers may be provided. The shell and tube heat exchanger consists of parallel tubes fitted in a shell containing baffles along its length. The whole unit is insulated. The baffles ensure turbulent water conditions thus providing good heat transfer.
