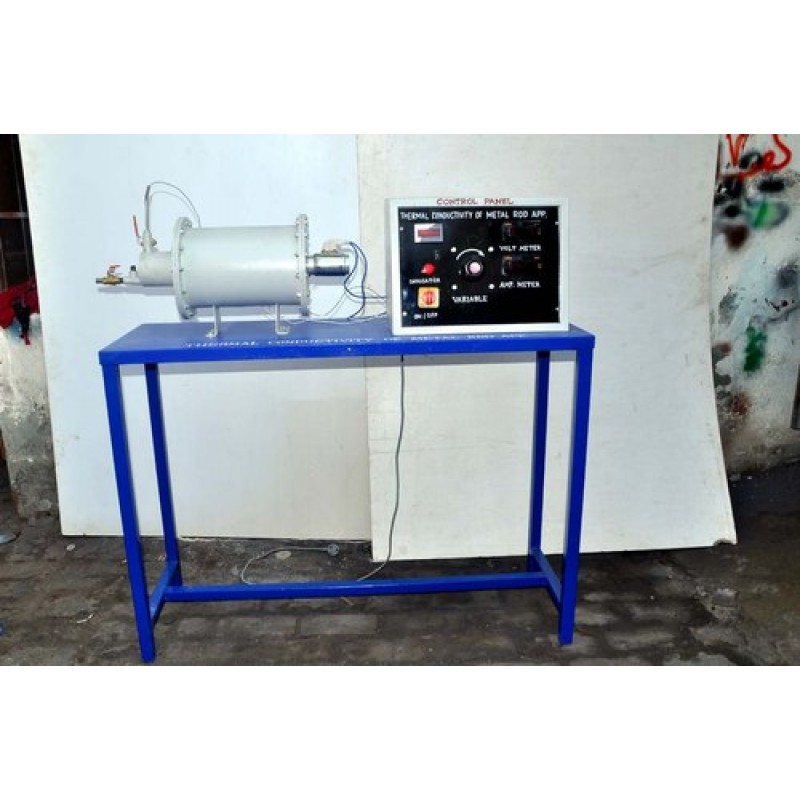

Thermal Conductivity Of Metal Rod

Product Details:

Country of Origin	Made in India
brand name	saini
model number	SSIHTL-005
- Metal Bar	Material of copper Length: 400 mm approx. Diameter :- 25 mm
- Insulating shall	Length of 250 mm approx. Diameter :200 mm
- Cooling water jacket	Length : 75 mm Diameter :50 mm made of stainless steel
- Water measurement	By measuring cylinder
- Stop watch	Electronic
- Heater	Nichrome wire of suitable capacity

SAINI SCIENCE INDUSTRIES manufacture of Thermal conductivity of metal rod apparatus.
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Thermal conductivity of metal rod apparatus. The experimental set up consists of metal bar, one end of which is heated by an electric heater while the other end of the bar projects inside the cooling water jacket. A cylindrical shell filled with insulating material surrounds the middle portion of the bar. The temperature of the bar is measured at different sections. Heat Input to the heater is given through variac. By varying the heat input rates, data can be obtained. Water at constant rate is circulated through the jacket and its flow rate and temperature rise is noted.

Additional Information:

• Item Code: SSIHT-005
