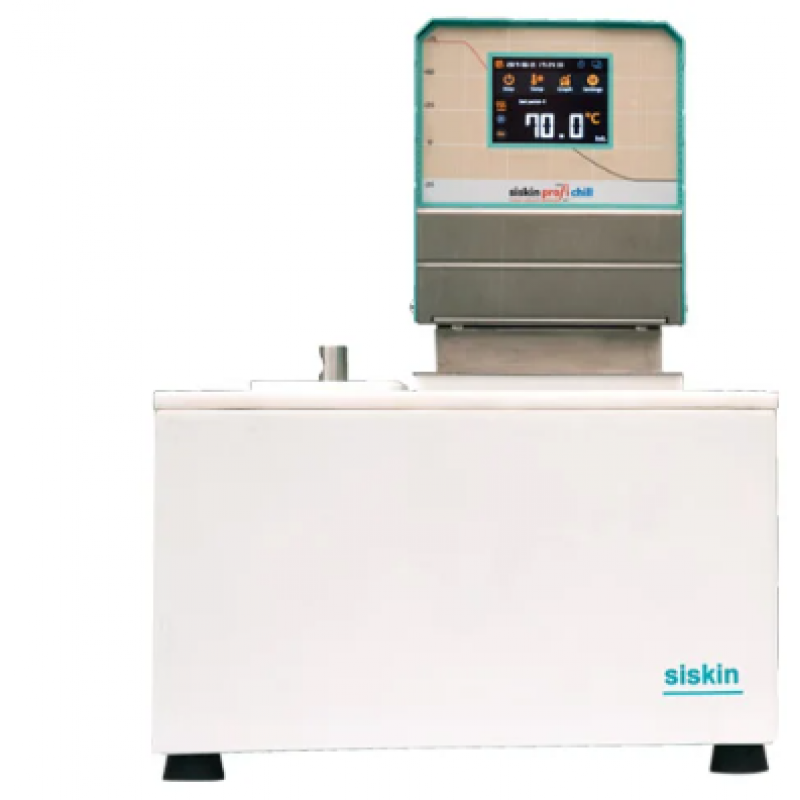

Heating And Circulating Baths
Product Details:
Specification | |
---|---|
Working temperature range | Amb(+5°C) to 100°C |
Temperature stability | ±0.1°C |
Temperature selection | 3.5" resistive touchscreen |
Temperature indication | 3.5" color TFT LCD display |
Display resolution | 0.1°C |
Multiple temperature selection | 3 |
Safety temperature limits | Provided |
Autostart function | Provided |
Circulation in standby mode | Provided |
Real time temp. correction | Provided |
Internal temperature control sensor | DIN (1/3A) Pt100 |
Bath volume | 12 ltrs |
Low liquid level protection | Provided |
Heater power | 1500W/2000W |
Pump flow rate | 17 ltr/min |
Pump pressure | 0.35bar |
Temperature control | Microcontroller based adaptive PID control |
Ext. temperature measurement | Optional |
Power supply requirment | 230V/50Hz/1Ph |
Dimensions(WXDXH) mm | 445 X 415 X 440 |
