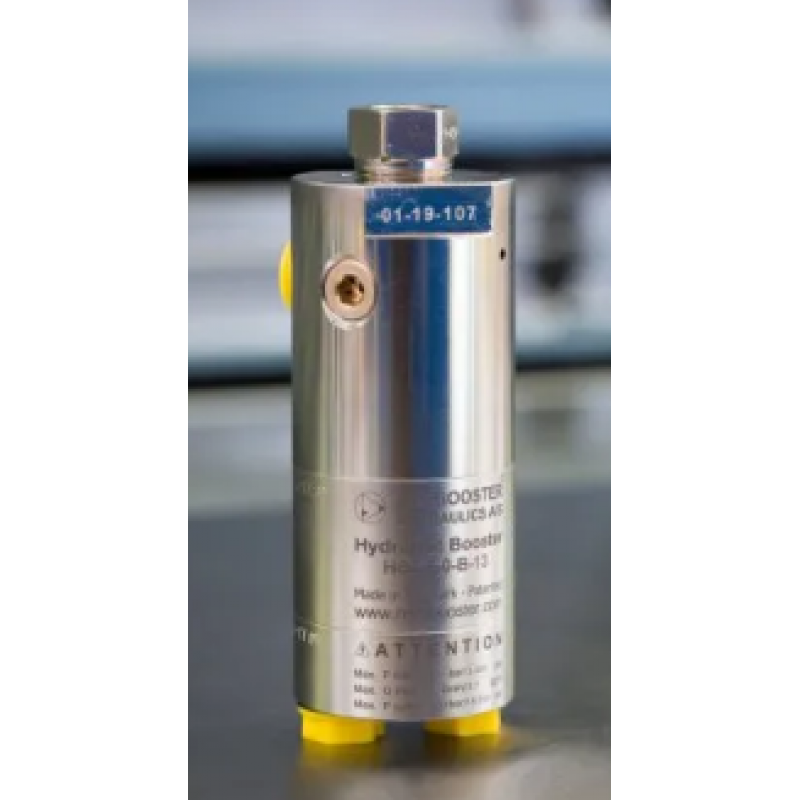

High Pressure Intensifier
Product Details:
Brand | miniBOOSTER |
Model Name/Number | HC7 |
pressure Inlet | 20-207 Bar |
Pressure Outlet | Max. 2000 Bar |
Weight | 1.5 Kg |
Mounting | Inline Tube |
The HC7 is a very compact high-pressure unit capable ofdelivering pressure up to 2,000 bar weighing only 1.5 kg. It isideal for use in portable applications like on power packs.The HC7 raises supplied pressure to a higher outlet pressureand automatically compensates for consumption of oil tomaintain the high pressure. Adjustment of the outlet pressureis carried out by varying the supplied pressure. With the choiceof different high- pressure adapters, a variety of threads canbe obtained from the M22x1.5 thread in the HP port. Higherpressure is available on request.
